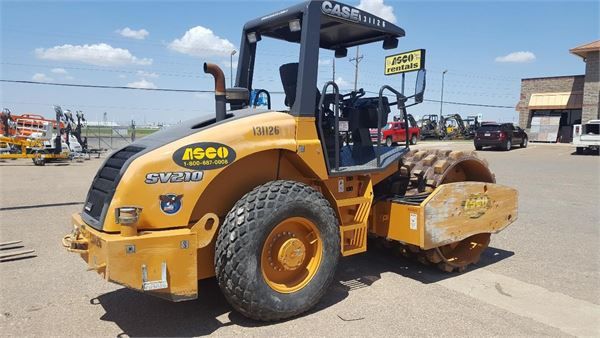

Case SV210
Browse All Case or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 17.08 in (5200 mm) |
| Overall Width | 6.33 ft in (1930 mm) |
| Height To Top Of Cab | 9.42 ft in (2900 mm) |
| Wheelbase | 8.42 in (2600 mm) |
| Ground Clearance | 15.2 in (380 mm) |
| Drum Diameter - Front | 4.27 ft in (1300 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | Tier II certified B4.5-C99 |
| Net Power | 99 hp (73.8 kw) |
Operational
| Operating Weight | 19445 lb (8820 kg) |
| Fuel Capacity | 72.7 gal (275 L) |
| Cooling System Fluid Capacity | 5 gal (19 L) |
| Engine Oil Capacity | 3 gal (11 L) |
| Hydraulic System Fluid Capacity | 19.3 gal (73 L) |
| Max Speed | 6.8 mph (11 km/h) |
| Tires *If Applicable | 14.9x24 in 8PR |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 45 amps |
Drum
| Drum Width | 67 in (1700 mm) |
| Drum Diameter | 51 in (1300 mm) |
| Static Linear Load | 177 lb/in (31.6 kg/cm) |
| Vibration Frequency 1 | 40 Hz |
| Nominal Amplitude - High | 0.1 in (1 mm) |
| Vibration Frequency 2 | 30 Hz |
| Nominal Amplitude - Low | 0.1 in (1.9 mm) |
| Centrifugal Force - High | 32597 lb (145 kN) |
| Centrifugal Force - Low | 35970 lb (160 kN) |
