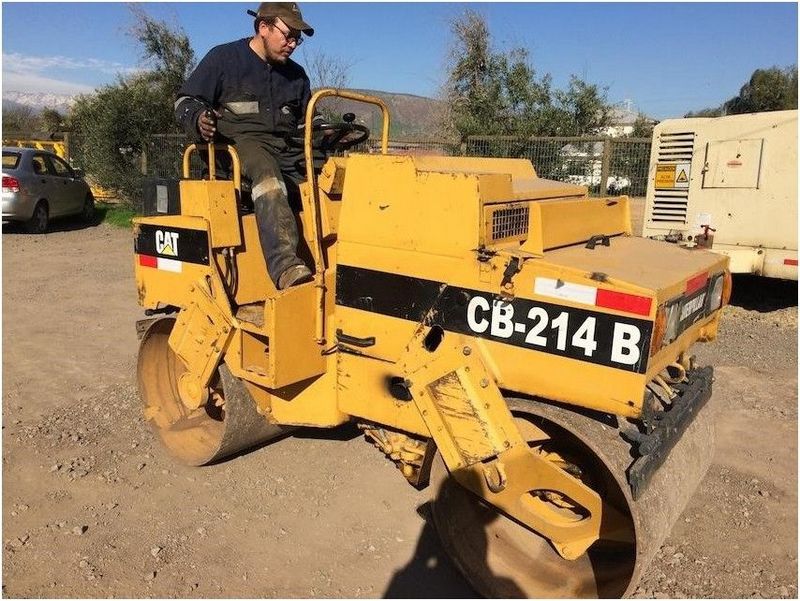

Caterpillar CB214B
Browse All Caterpillar or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 7.88 in (2400 mm) |
| Overall Width | 3.61 ft in (1100 mm) |
| Height To Top Of Cab | 8.49 ft in (2585 mm) |
| Wheelbase | 5.58 in (1700 mm) |
| Ground Clearance | 9.85 in (250 mm) |
| Drum Diameter - Front | 2.3 ft in (700 mm) |
| Drum Diameter - Rear | 2.3 ft in (700 mm) |
Engine
| Number Of Cylinders | 2 |
| Engine Make | 2360 |
| Engine Model | 2M40L |
| Gross Power | 33 hp (24.7 kw) |
| Power Measured @ | 2600 rpm |
| Displacement | 104.8 cu in (1.8 L) |
Operational
| Operating Weight | 5070.7 lb (2300 kg) |
| Fuel Capacity | 14.2 gal (53.5 L) |
| Engine Oil Capacity | 1.2 gal (4.5 L) |
| Hydraulic System Fluid Capacity | 10.6 gal (40 L) |
| Max Speed | 6.6 mph (10.5 km/h) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 50 amps |
Drum
| Drum Width | 39.4 in (1000 mm) |
| Drum Diameter | 27.6 in (700 mm) |
| Static Linear Load | 64 lb/in (11.5 kg/cm) |
| Vibration Frequency 1 | 50 Hz |
| Nominal Amplitude - High | 0.1 in (0.6 mm) |
| Centrifugal Force - High | 4500 lb (20.1 kN) |
