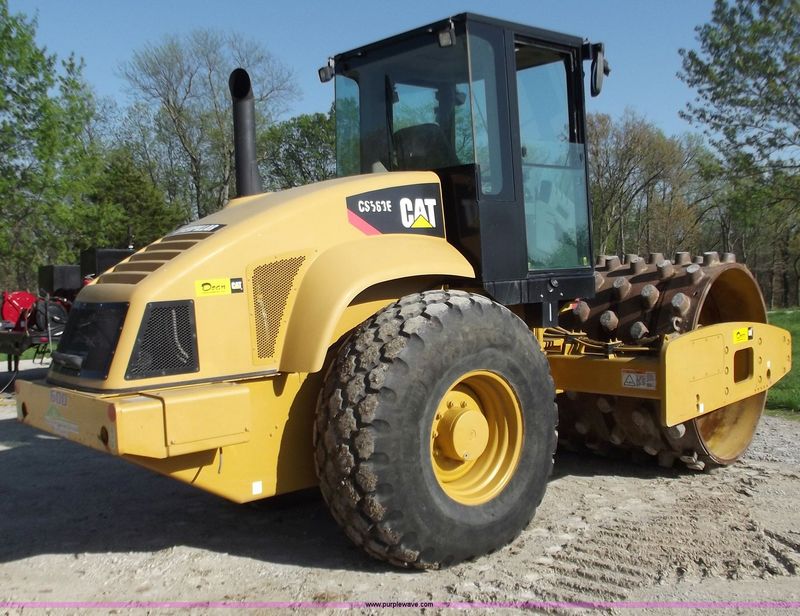

Caterpillar CS563E
Browse All Caterpillar or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 18.9 in (5760 mm) |
| Height To Top Of Cab | 10.08 ft in (3070 mm) |
| Wheelbase | 9.52 in (2900 mm) |
| Ground Clearance | 17.64 in (448 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3056E ATAAC |
| Gross Power | 150.2 hp (112 kw) |
| Net Power | 143.5 hp (107 kw) |
| Displacement | 366.2 cu in (6 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 26742.1 lb (12130 kg) |
| Fuel Capacity | 87.2 gal (330 L) |
| Cooling System Fluid Capacity | 6.9 gal (26 L) |
| Engine Oil Capacity | 3.2 gal (12 L) |
| Hydraulic System Fluid Capacity | 17 gal (64 L) |
| Max Speed | 7.1 mph (11.4 km/h) |
| Tires *If Applicable | 23.1x26 |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
Drum
| Drum Width | 84.1 in (2134 mm) |
| Drum Diameter | 60 in (1524 mm) |
| Static Linear Load | 458 lb/in (32.2 kg/cm) |
| Vibration Frequency 1 | 31.9 Hz |
| Nominal Amplitude - High | 0.1 in (1.7 mm) |
| Nominal Amplitude - Low | 0.1 in (0.9 mm) |
| Centrifugal Force - High | 59799.2 lb (266 kN) |
| Centrifugal Force - Low | 29899.6 lb (133 kN) |
