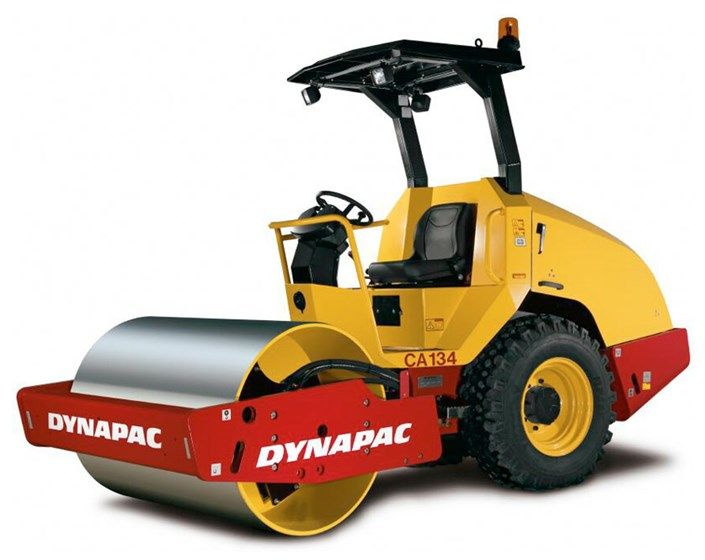

Dynapac CA134D
Browse All Dynapac or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 12.99 in (3958 mm) |
| Overall Width | 4.91 ft in (1494 mm) |
| Height To Top Of Cab | 8.23 ft in (2507 mm) |
| Wheelbase | 6.1 in (1859 mm) |
| Ground Clearance | 9.57 in (243 mm) |
Engine
| Engine Make | 2240 |
| Engine Model | e 5030 TF270 |
| Gross Power | 84 hp (62 kw) |
| Power Measured @ | 2800 rpm |
| Aspiration | water cooled turbo diesel with after cooler |
Operational
| Operating Weight | 10031.1 lb (4550 kg) |
| Fuel Capacity | 31 gal (117 L) |
| Max Speed | 3.8 mph (6 km/h) |
| Tires *If Applicable | 12.5-20 |
Drum
| Drum Width | 54 in (1370 mm) |
| Drum Diameter | 39.4 in (1000 mm) |
| Static Linear Load | lb/in (13 kg/cm) |
| Vibration Frequency 1 | 35 Hz |
| Nominal Amplitude - Med | 0.1 in (1.7 mm) |
| Centrifugal Force - Med | 20008 lb (89 kN) |
