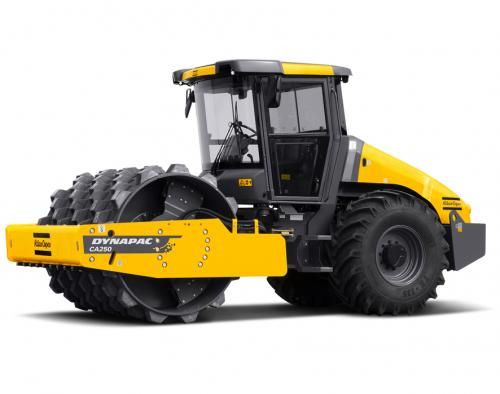

Dynapac CA250D (BRAZIL)
Browse All Dynapac or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 218.51 in (5550 mm) |
| Wheelbase | 113.35 in (2879 mm) |
| Ground Clearance | 17.84 in (453 mm) |
| Height With Out Rops | 7.19 ft in (2190 mm) |
| Height With Rops | 9.69 ft in (2952 mm) |
| Gradeability | 65 % |
| Overhang Front | 0.32 ft in (97 mm) |
| Overhang Rear | 0.32 ft in (97 mm) |
| Turning Radius - Inside | 10.18 ft in (3100 mm) |
| Turning Radius - Outside | 17.72 ft in (5400 mm) |
| Curb Clearance | 15.75 in (400 mm) |
Engine
| Engine Make | Cummins |
| Engine Model | QSB 4.5 Tier 3 |
| Engine Type | Water cooled turbo Diesel |
| Gross Power | 110 hp (82 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Operating Weight Rops | 22928.1 lb (10400 kg) |
| Operating Weight | 26014.6 lb (11800 kg) |
| Fuel Capacity | 250 gal (946.4 L) |
| Max Speed | 7.5 mph (12 km/h) |
| Tire Size | 23,1 x 26 |
Drum
| Drum Thickness | 1 in (25 mm) |
| Drum Width | 83.9 in (2130 mm) |
| Drum Diameter | 60 in (1523 mm) |
| Static Linear Load | 162.4 lb/in (29 kg/cm) |
| Nominal Amplitude - High | 0.1 in (1.8 mm) |
| Nominal Amplitude - Low | 0.1 in (0.9 mm) |
| Centrifugal Force - High | 55078.2 lb (245 kN) |
| Centrifugal Force - Low | 26752.3 lb (119 kN) |
