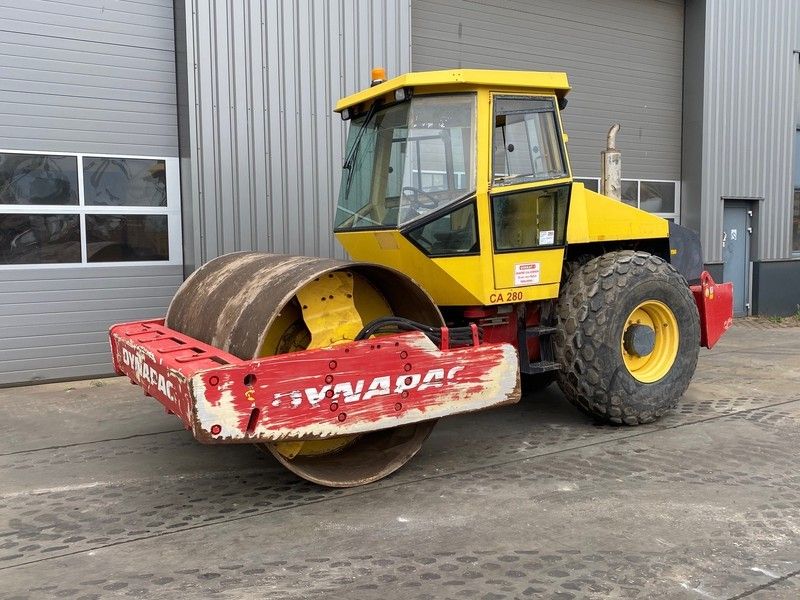

Dynapac CA280
Browse All Dynapac or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 18.21 in (5550 mm) |
| Overall Width | 6.99 ft in (2130 mm) |
| Height To Top Of Cab | 9.69 ft in (2952 mm) |
| Wheelbase | 9.45 in (2879 mm) |
| Ground Clearance | 15.75 in (400 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB 4.5 |
| Gross Power | 110 hp (82 kw) |
| Power Measured @ | 2200 rpm |
| Aspiration | water cooled turbo diesel with after cooler |
Operational
| Operating Weight | 27116.9 lb (12300 kg) |
| Fuel Capacity | 66.1 gal (250 L) |
| Max Speed | 4.7 mph (7.5 km/h) |
| Tires *If Applicable | 23.1x26 |
Drum
| Drum Width | 83.9 in (2130 mm) |
| Drum Diameter | 60 in (1523 mm) |
| Static Linear Load | lb/in (31.9 kg/cm) |
| Vibration Frequency 1 | 33 Hz |
| Nominal Amplitude - High | 0.1 in (1.7 mm) |
| Nominal Amplitude - Low | 0.1 in (0.8 mm) |
| Centrifugal Force - High | 55303.1 lb (246 kN) |
| Centrifugal Force - Low | 26752.3 lb (119 kN) |
