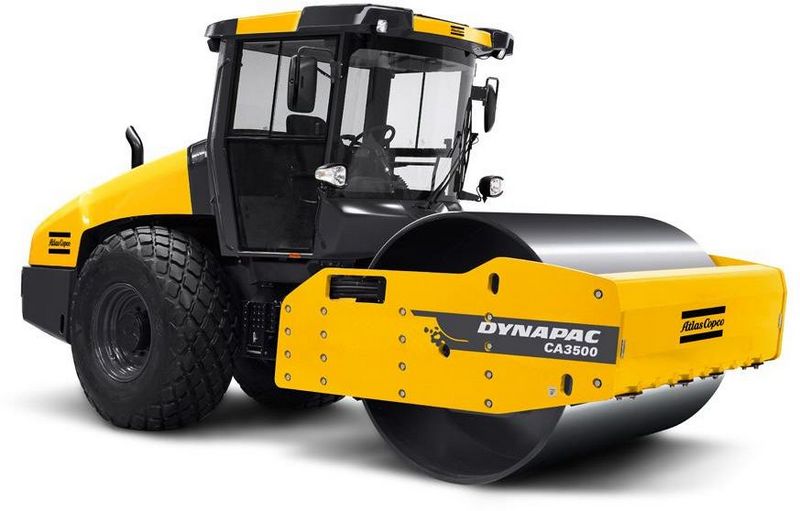

Dynapac CA3500DCO
Browse All Dynapac or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 235.83 in (5990 mm) |
| Wheelbase | 117.72 in (2990 mm) |
| Ground Clearance | 17.72 in (450 mm) |
| Height With Out Rops | 6.99 ft in (2130 mm) |
| Height With Rops | 9.45 ft in (2880 mm) |
| Gradeability | 55 % |
| Overhang Front | 0.29 ft in (87 mm) |
| Overhang Rear | 0.29 ft in (87 mm) |
| Turning Radius - Inside | 10.83 ft in (3300 mm) |
| Turning Radius - Outside | 17.89 ft in (5450 mm) |
| Curb Clearance | 17.72 in (450 mm) |
Engine
| Engine Make | Cummins |
| Engine Model | QSF3.8 |
| Engine Type | Water cooled turbo charged + Intercooler |
| Gross Power | 130.1 hp (97 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Def Tank Capacity | 5.3 gal (20 L) |
| Operating Weight Rops | 26896.4 lb (12200 kg) |
| Operating Weight | 27557.8 lb (12500 kg) |
| Fuel Capacity | 272 gal (1029.7 L) |
| Max Speed | 7.5 mph (12 km/h) |
| Tire Size | 23.1 x 26 AW |
Drum
| Drum Thickness | 1.4 in (35 mm) |
| Drum Width | 83.9 in (2130 mm) |
| Drum Diameter | 59.9 in (1520 mm) |
| Static Linear Load | 201.6 lb/in (36 kg/cm) |
| Centrifugal Force - High | 62946.5 lb (280 kN) |
