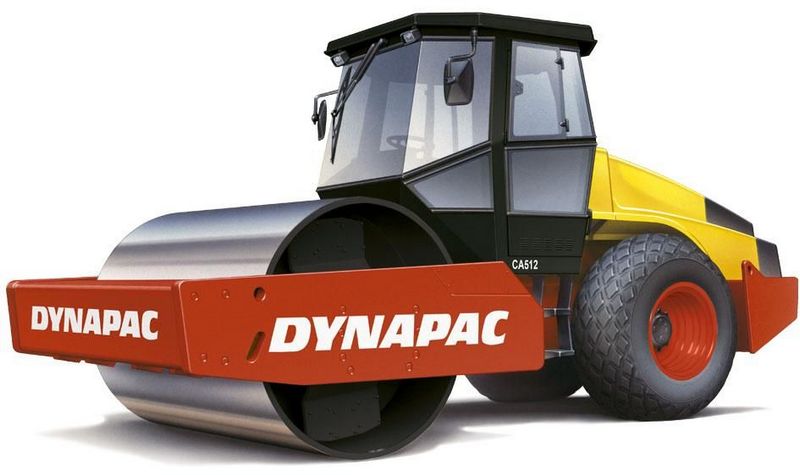

Dynapac CA512D
Browse All Dynapac or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 19.69 in (6000 mm) |
| Overall Width | 6.99 ft in (2130 mm) |
| Height To Top Of Cab | 9.7 ft in (2955 mm) |
| Wheelbase | 9.82 in (2992 mm) |
| Ground Clearance | 17.72 in (450 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | QSB 6.7 T3 |
| Gross Power | 173 hp (129 kw) |
| Power Measured @ | 2200 rpm |
| Aspiration | water cooled turbo diesel with after cooler |
Operational
| Operating Weight | 34392.2 lb (15600 kg) |
| Fuel Capacity | 84.6 gal (320 L) |
| Max Speed | 6.9 mph (11 km/h) |
| Tires *If Applicable | 23.1x26 |
Drum
| Drum Width | 83.9 in (2130 mm) |
| Drum Diameter | 61.6 in (1563 mm) |
| Static Linear Load | lb/in (49.3 kg/cm) |
| Vibration Frequency 1 | 29 Hz |
| Nominal Amplitude - High | 0.1 in (1.8 mm) |
| Vibration Frequency 2 | 33 Hz |
| Nominal Amplitude - Low | 0.1 in (1.1 mm) |
| Centrifugal Force - High | 67442.7 lb (300 kN) |
| Centrifugal Force - Low | 53504.6 lb (238 kN) |
