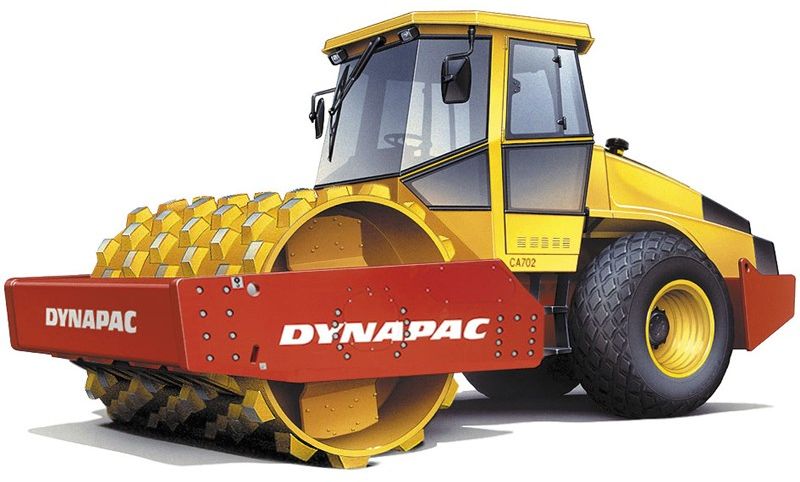

Dynapac CA702PD
Contents:
| Overall Length | 256.5 in (6515 mm) |
| Wheelbase | 131.54 in (3341 mm) |
| Ground Clearance | 15.95 in (405 mm) |
| Height With Out Rops | 7.24 ft in (2206 mm) |
| Height With Rops | 9.79 ft in (2982 mm) |
| Gradeability | 45 % |
| Overhang Front | 0.51 ft in (155 mm) |
| Overhang Rear | 0.45 ft in (135 mm) |
| Turning Radius - Inside | 12.14 ft in (3700 mm) |
| Turning Radius - Outside | 19.69 ft in (6000 mm) |
| Curb Clearance | 19.02 in (483 mm) |
| Engine Make | Cummins |
| Engine Model | QSB6.7 T3 |
| Gross Power | 220 hp (164.1 kw) |
| Power Measured @ | 2200 rpm |
| Operating Weight Cabin | 59414.6 lb (26950 kg) |
| Operating Weight | 60076 lb (27250 kg) |
| Fuel Capacity | 84.6 gal (320 L) |
| Max Speed | 6.9 mph (11 km/h) |
| Tire Size | 23,1x26 |
| Max Steering Angle | 38 degrees |
| Drum Width | 83.9 in (2130 mm) |
| Drum Diameter | 66.2 in (1680 mm) |
| Vibration Frequency 1 | 28 Hz |
| Nominal Amplitude - High | 0.1 in (2 mm) |
| Vibration Frequency 2 | 30 Hz |
| Nominal Amplitude - Low | 0.1 in (1.3 mm) |
| Centrifugal Force - High | 74187 lb (330 kN) |
| Centrifugal Force - Low | 57101.5 lb (254 kN) |
