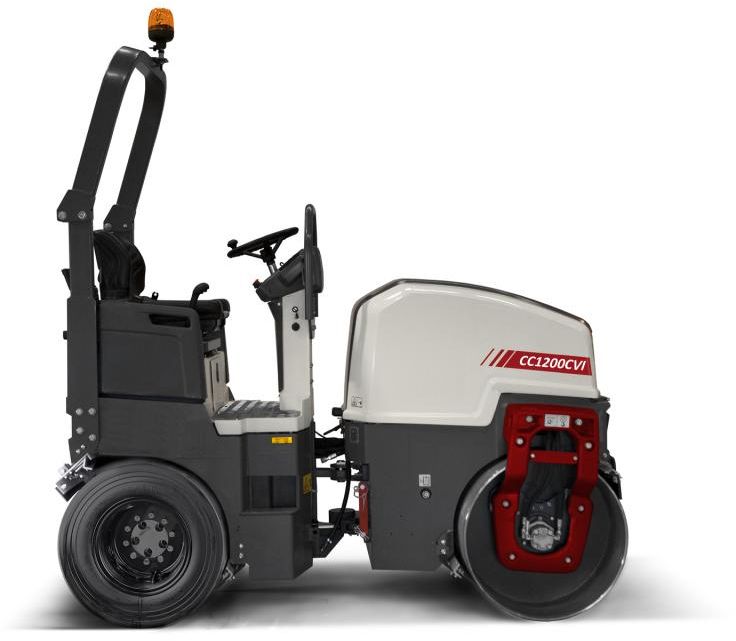

Dynapac CC1200C VI
Browse All Dynapac or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 94 in (2387.6 mm) |
| Overall Width | 4.42 ft in (1346.2 mm) |
| Height To Top Of Cab | 8.34 ft in (2540 mm) |
| Wheelbase | 67 in (1701.8 mm) |
| Ground Clearance | 7 in (177.8 mm) |
| Gradeability | 65 % |
| Overhang Front | 0.25 ft in (76.2 mm) |
| Overhang Rear | 0.25 ft in (76.2 mm) |
| Turning Radius - Inside | 8 ft in (2438.4 mm) |
| Turning Radius - Outside | 12 ft in (3657.6 mm) |
| Curb Clearance | 22 in (558.8 mm) |
Engine
| Emissions Certification | Tier 4i |
| Engine Make | Kubota |
| Engine Model | D1703-M IIIA |
| Engine Type | Water cooled |
| Gross Power | 35 hp (26.1 kw) |
| Power Measured @ | 2800 rpm |
Operational
| Operating Weight Rops | 5100 lb (2313.4 kg) |
| Oscillating Angle | 10 degrees |
| Operating Weight | 6800 lb (3084.5 kg) |
| Fuel Capacity | 12 gal (45.5 L) |
| Water Spray System Fluid Capacity | 49 gal (185.5 L) |
| Max Speed | 6.3 mph (10 km/h) |
| Steering Angle | 30 degrees |
Drum
| Drum Thickness | 0.5 in (12.7 mm) |
| Drum Width | 47 in (1193.8 mm) |
| Drum Diameter | 28 in (711.2 mm) |
| Static Linear Load | 58 lb/in (10.4 kg/cm) |
| Vibration Frequency 1 | 66 Hz |
| Nominal Amplitude - High | 0.1 in (0.6 mm) |
| Vibration Frequency 2 | 61 Hz |
| Centrifugal Force - High | 7643.6 lb (34 kN) |
| Centrifugal Force - Low | 6519.5 lb (29 kN) |
Brakes
| Parking Brake | Failsafe multidisc brake on drum and wheels |
| Service Brake | Hydrostatic in forward and reverse lever |
