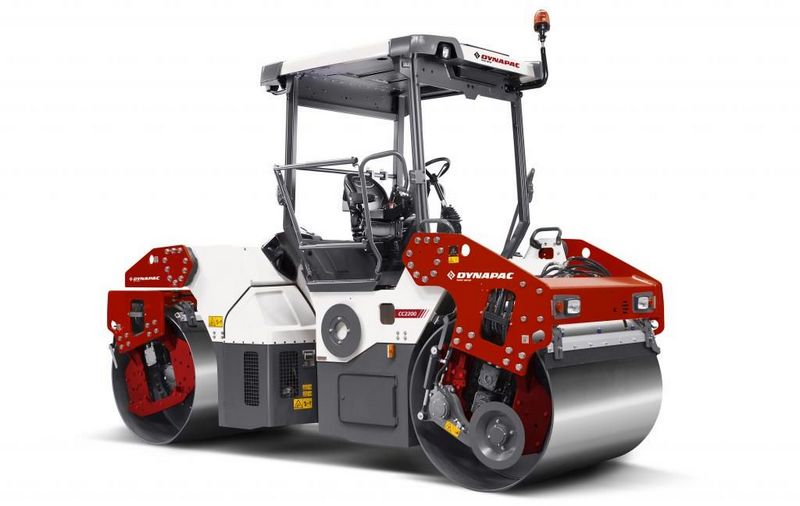

Dynapac CC2200
Browse All Dynapac or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 176.78 in (4490 mm) |
| Height To Top Of Cab | 9.81 ft in (2990 mm) |
| Wheelbase | 131.5 in (3340 mm) |
| Ground Clearance | 10.63 in (270 mm) |
| Gradeability | 42 % |
| Turning Radius - Inside | 16.64 ft in (5070 mm) |
| Turning Radius - Outside | 21.56 ft in (6570 mm) |
| Curb Clearance | 28.15 in (715 mm) |
Engine
| Engine Make | Deutz |
| Engine Model | TCD 3.6 HT |
| Engine Type | Water cooled turbo Diesel |
| Gross Power | 73.8 hp (55 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Operating Weight Rops | 16755.2 lb (7600 kg) |
| Oscillating Angle | 7 degrees |
| Operating Weight | 19841.7 lb (9000 kg) |
| Water Spray Tank Fluid Capacity | 198.2 gal (750 L) |
| Max Speed | 7.5 mph (12 km/h) |
| Steering Angle | 32 degrees |
Drum
| Drum Thickness | 0.8 in (20 mm) |
| Drum Width | 59.1 in (1500 mm) |
| Drum Diameter | 45.3 in (1150 mm) |
| Static Linear Load | 141.7 lb/in (25.3 kg/cm) |
| Vibration Frequency 1 | 48 Hz |
| Nominal Amplitude - High | 0.1 in (0.7 mm) |
| Vibration Frequency 2 | 67 Hz |
| Nominal Amplitude - Low | 0.1 in (0.3 mm) |
| Centrifugal Force - High | 17535.1 lb (78 kN) |
| Centrifugal Force - Low | 15062.2 lb (67 kN) |
