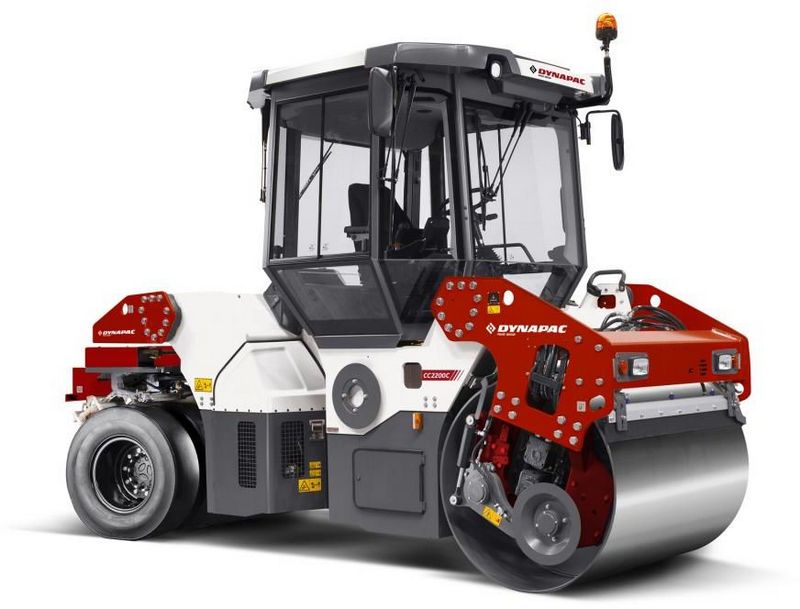

Dynapac CC2200C
Browse All Dynapac or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 117 in (2971.8 mm) |
| Overall Width | 5.34 ft in (1625.6 mm) |
| Height To Top Of Cab | 9.84 ft in (2997.2 mm) |
| Wheelbase | 131 in (3327.4 mm) |
| Ground Clearance | 11 in (279.4 mm) |
| Gradeability | 49 % |
| Turning Radius - Inside | 16.67 ft in (5080 mm) |
| Turning Radius - Outside | 21.59 ft in (6578.6 mm) |
| Curb Clearance | 28 in (711.2 mm) |
Engine
| Emissions Certification | Tier 4f |
| Engine Make | Deutz |
| Engine Model | TCD 3.6 HT |
| Engine Type | Water cooled turbo diesel |
| Gross Power | 74 hp (55.2 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Operating Weight Rops | 16300 lb (7393.6 kg) |
| Oscillating Angle | 7 degrees |
| Operating Weight | 18100 lb (8210.1 kg) |
| Fuel Capacity | 34 gal (128.8 L) |
| Engine Oil Capacity | 21 gal (79.5 L) |
| Water Spray System Fluid Capacity | 198 gal (749.6 L) |
| Max Speed | 7.5 mph (12.1 km/h) |
| Steering Angle | 32 degrees |
Drum
| Drum Thickness | 0.8 in (20.4 mm) |
| Drum Width | 59 in (1498.6 mm) |
| Drum Diameter | 45 in (1143 mm) |
| Static Linear Load | 144 lb/in (25.8 kg/cm) |
| Vibration Frequency 1 | 48 Hz |
| Nominal Amplitude - High | 0.1 in (0.8 mm) |
| Vibration Frequency 2 | 67 Hz |
| Nominal Amplitude - Low | 0.1 in (0.4 mm) |
| Centrifugal Force - High | 17540 lb (78.1 kN) |
| Centrifugal Force - Low | 15060 lb (67 kN) |
Tires
| Wheel Spacing | 3 in (76.2 mm) |
| Track Widths | 11 in (279.4 mm) |
| Wheel Track/Tire Overlap | 17 in (431.8 mm) |
Brakes
| Parking Brake | Failsafe multidisc brake in both drums |
| Service Brake | Hydrostatic in forward and reverse lever |
