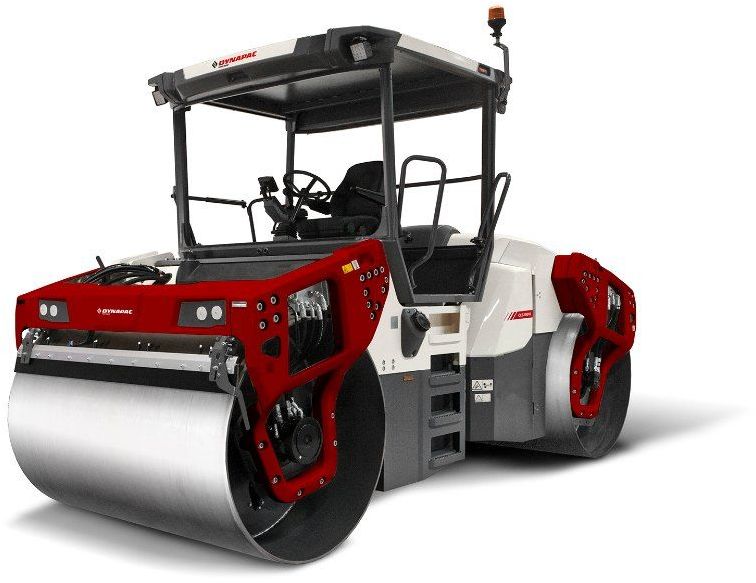

Dynapac CC4000 VI
Browse All Dynapac or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 193 in (4902.2 mm) |
| Overall Width | 7 ft in (2133.6 mm) |
| Height To Top Of Cab | 9.84 ft in (2997.2 mm) |
| Wheelbase | 145 in (3683 mm) |
| Ground Clearance | 12 in (304.8 mm) |
| Gradeability | 45 % |
| Turning Radius - Inside | 18.34 ft in (5588 mm) |
| Turning Radius - Outside | 23.84 ft in (7264.4 mm) |
| Curb Clearance | 32 in (812.8 mm) |
Engine
| Engine Make | Cummins |
| Engine Model | QSF3.8 IV |
| Engine Type | Diesel engine with water cooled turbo |
| Gross Power | 130.1 hp (97 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Def Tank Capacity | 4 gal (15.2 L) |
| Operating Weight Rops | 47179 lb (21400 kg) |
| Oscillating Angle | 7 degrees |
| Operating Weight | 62390.9 lb (28300 kg) |
| Fuel Capacity | 48 gal (181.7 L) |
| Water Spray Tank Fluid Capacity | 195 gal (738.2 L) |
| Max Speed | 4.7 mph (7.5 km/h) |
| Steering Angle | 32 degrees |
Drum
| Drum Thickness | 0.8 in (18.1 mm) |
| Drum Width | 66 in (1676.4 mm) |
| Drum Diameter | 48 in (1219.2 mm) |
| Static Linear Load | 162 lb/in (29 kg/cm) |
| Vibration Frequency 1 | 51 Hz |
| Nominal Amplitude - High | 0.1 in (0.8 mm) |
| Vibration Frequency 2 | 67 Hz |
| Nominal Amplitude - Low | 0.1 in (0.4 mm) |
| Centrifugal Force - High | 25400 lb (113 kN) |
| Centrifugal Force - Low | 16640 lb (74.1 kN) |
