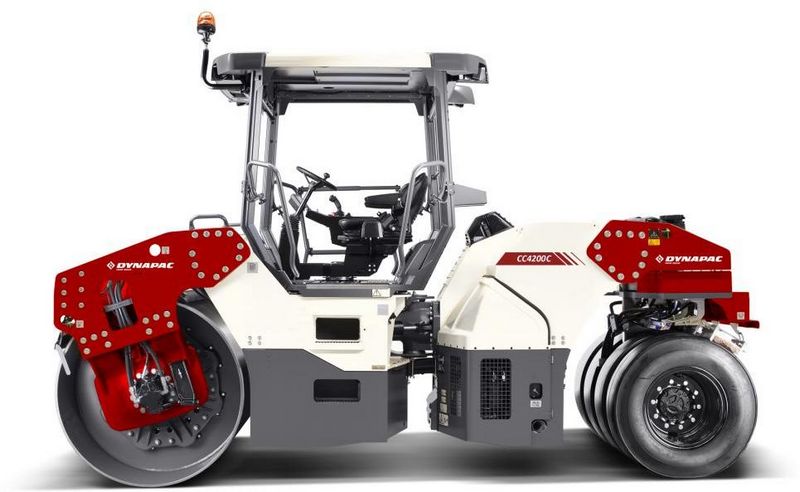

Dynapac CC4200C
Browse All Dynapac or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 196 in (4978.4 mm) |
| Overall Width | 6.17 ft in (1879.6 mm) |
| Height To Top Of Cab | 9.84 ft in (2997.2 mm) |
| Wheelbase | 145 in (3683 mm) |
| Ground Clearance | 12 in (304.8 mm) |
| Gradeability | 39 % |
| Turning Radius - Outside | 16.25 ft in (4953 mm) |
| Curb Clearance | 34 in (863.6 mm) |
Engine
| Emissions Certification | Tier 4i |
| Engine Make | Cummins |
| Engine Model | QSB 4.5, III |
| Engine Type | Water cooled turbo diesel |
| Gross Power | 130 hp (97 kw) |
| Power Measured @ | 2200 rpm |
Operational
| Operating Weight Rops | 20900 lb (9480.1 kg) |
| Oscillating Angle | 8 degrees |
| Operating Weight | 22900 lb (10387.3 kg) |
| Fuel Capacity | 63 gal (238.5 L) |
| Engine Oil Capacity | 21 gal (79.5 L) |
| Water Spray System Fluid Capacity | 238 gal (901 L) |
| Max Speed | 7.5 mph (12.1 km/h) |
| Steering Angle | 32 degrees |
Drum
| Drum Thickness | 0.7 in (17.8 mm) |
| Drum Width | 68 in (1727.2 mm) |
| Drum Diameter | 51 in (1295.4 mm) |
| Static Linear Load | 165 lb/in (29.5 kg/cm) |
| Vibration Frequency 1 | 51 Hz |
| Nominal Amplitude - High | 0.1 in (0.8 mm) |
| Vibration Frequency 2 | 67 Hz |
| Nominal Amplitude - Low | 0.1 in (0.4 mm) |
| Centrifugal Force - High | 31280 lb (139.2 kN) |
| Centrifugal Force - Low | 20700 lb (92.1 kN) |
Tires
| Wheel Spacing | 6 in (152.4 mm) |
| Track Widths | 11 in (279.4 mm) |
| Wheel Track/Tire Overlap | 18 in (457.2 mm) |
Brakes
| Parking Brake | Failsafe multidisc brake in drum and wheel motors |
| Service Brake | Hydrostatic in forward and reverse lever |
