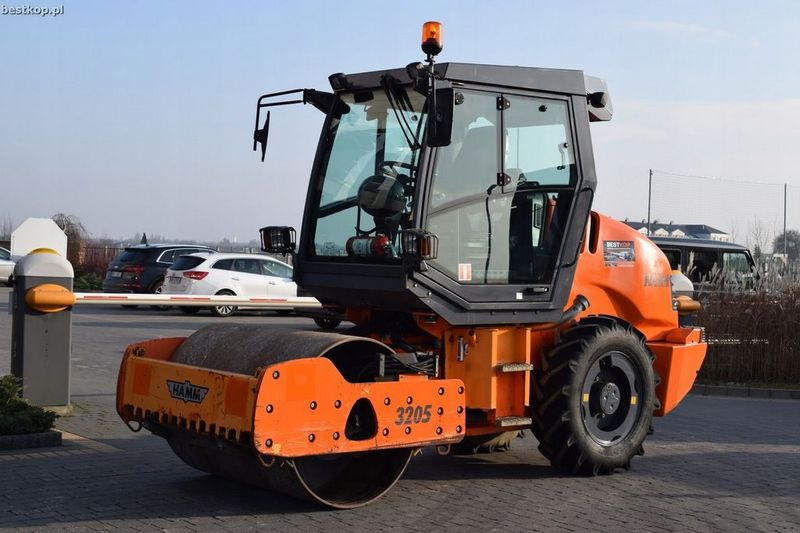

Hamm 3205
Contents:
| Overall Length | 14.29 in (4355 mm) |
| Overall Width | 4.86 ft in (1480 mm) |
| Height To Top Of Cab | 9.11 ft in (2775 mm) |
| Engine Make | 2349 |
| Engine Model | F4M1011F |
| Gross Power | 64.4 hp (48 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 177 cu in (2.9 L) |
| Operating Weight | 11794.8 lb (5350 kg) |
| Fuel Capacity | 46.3 gal (175 L) |
| Drum Width | 54 in (1370 mm) |
| Vibration Frequency 1 | 42 Hz |
| Nominal Amplitude - High | 0.1 in (1.6 mm) |
| Nominal Amplitude - Low | 0.1 in (0.7 mm) |
| Centrifugal Force - High | lb (317 kN) |
| Centrifugal Force - Low | lb (231 kN) |
