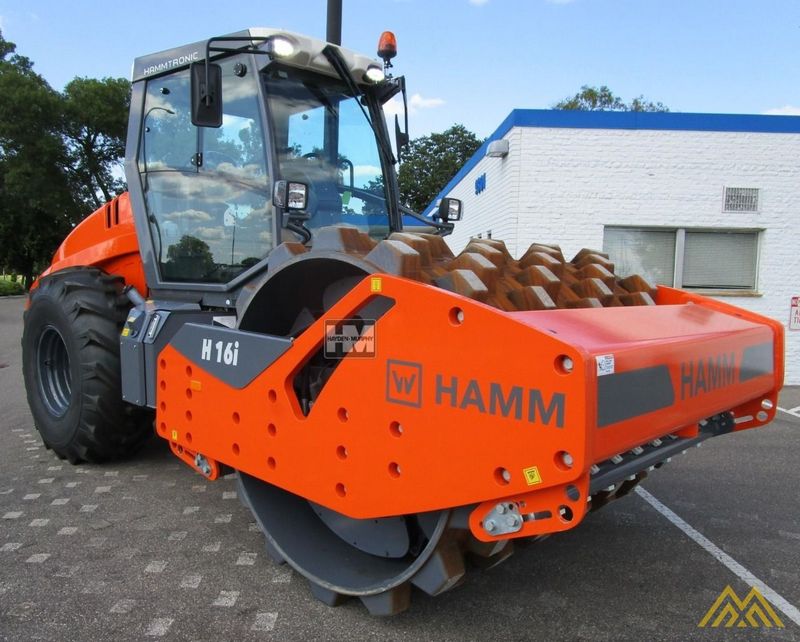

Hamm H16i
Browse All Hamm or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 234.26 in (5950 mm) |
| Height To Top Of Cab | 9.72 ft in (2960 mm) |
| Wheelbase | 124.02 in (3150 mm) |
| Ground Clearance | 15.36 in (390 mm) |
| Angle Of Driving Slope-Front | 53 degrees |
| Width Over Cab | 91.11 in (2314 mm) |
| Angle Of Driving Slope-Rear | 32 degrees |
| Loadover Height | 7.58 ft in (2.31 m) |
| Turning Radius - Inside | 12.7 ft in (3870 mm) |
Steering System
| Oscillating Angle | 10 degrees |
| Steering Method | Articulated steering |
Speeds
| Size Of Tyres, Rear | AW 23.1-26 12 PR |
Engine
| Emissions Certification | EU Stage IV / EPA Tier 4 |
| Diesel Fuel Tank Capacity - Standard Tank | 8.5 gal (32 L) |
| Exhaust Gas Recirculation (Egr) | DOC-DPF-SCR |
| Engine Power@Iso 14396 | 154.3 hp (115 kw) |
| Engine Power@Saej1349 | 154.3 hp (115 kw) |
| Number Of Cylinders | 4 |
| Engine Make | Deutz |
| Engine Model | TCD 4.1 L4 |
| Power Measured @ | 2300 rpm |
Operational
| Operating Weight Cabin | 36222 lb (16430 kg) |
| Operating Weight Rops | 35803.1 lb (16240 kg) |
| Fuel Capacity | 74 gal (280 L) |
| Max Weight | 42857.9 lb (19440 kg) |
| Max Speed | 10 mph (16.1 km/h) |
| Axle Load - Front | 23578.5 lb (10695 kg) |
| Axle Load - Rear | 12643.6 lb (5735 kg) |
Drum
| Drum Type | smooth |
| Drum Thickness | 1.8 in (45 mm) |
| Drum Width | 84.3 in (2140 mm) |
| Drum Diameter | 59.3 in (1504 mm) |
| Static Linear Load | 503 lb/in (89.9 kg/cm) |
| Vibration Frequency 1 | 28 Hz |
| Nominal Amplitude - High | 0.1 in (2.2 mm) |
| Vibration Frequency 2 | 31 Hz |
| Nominal Amplitude - Low | 0.1 in (1.4 mm) |
| Centrifugal Force - High | 73737.4 lb (328 kN) |
| Centrifugal Force - Low | 58225.6 lb (259 kN) |
