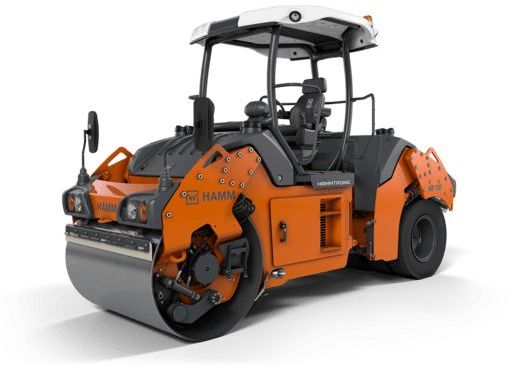

Hamm HD PLUS 70i VT
Browse All Hamm or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 176.38 in (4480 mm) |
| Overall Width | 5.88 ft in (1790 mm) |
| Height To Top Of Cab | 9.49 ft in (2890 mm) |
| Wheelbase | 131.5 in (3340 mm) |
| Ground Clearance | 29.53 in (750 mm) |
| Turning Radius - Inside | 13.88 ft in (4230 mm) |
| Width Over Tyres | 55.91 in (1420 mm) |
Engine
| Emission Tier Level | EPA Tier 4 |
| Number Of Cylinders | 4 |
| Engine Make | DEUTZ |
| Engine Model | TCD 2.9 L4 |
| Gross Power | 74.3 hp (55.4 kw) |
| Net Power | 74.2 hp (55.4 kw) |
| Power Measured @ | 2500 rpm |
Operational
| Operating Weight Cabin | 15509.6 lb (7035 kg) |
| Operating Weight Rops | 15134.8 lb (6865 kg) |
| Oscillating Angle | 10 degrees |
| Operating Weight | 20921.9 lb (9490 kg) |
| Fuel Capacity | 31.8 gal (120 L) |
| Water Spray Tank Fluid Capacity | 185 gal (700 L) |
| Max Speed | 3.8 mph (6 km/h) |
| Tires *If Applicable | 11.00-20 |
| Tires | 4 |
Drum
| Drum Thickness | 0.7 in (17 mm) |
| Oscillation Force , Rear -1 | 39341.6 lb (175 kN) |
| Oscillation Frequency , Rear - 1 | 36 Hz |
| Tangential Amplitude , Rear - 1 | 0.1 in (1.3 mm) |
| Drum Width | 59.1 in (1500 mm) |
| Drum Diameter | 44.9 in (1140 mm) |
| Static Linear Load | 140 lb/in (25 kg/cm) |
| Vibration Frequency 1 | 48 Hz |
| Nominal Amplitude - High | 0.1 in (0.7 mm) |
| Vibration Frequency 2 | 58 Hz |
| Nominal Amplitude - Low | 0.1 in (0.4 mm) |
| Centrifugal Force - High | 18884 lb (84 kN) |
| Centrifugal Force - Low | 15511.9 lb (69 kN) |
