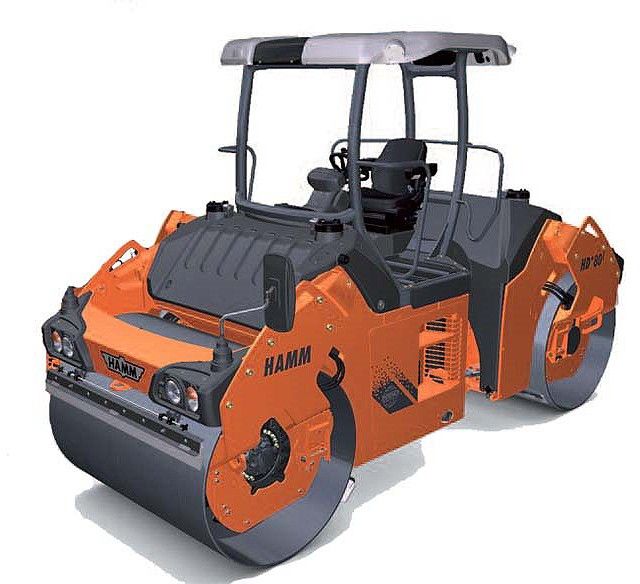

Hamm HD PLUS 80i VV-S
Browse All Hamm or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 176.38 in (4480 mm) |
| Overall Width | 5.96 ft in (1815 mm) |
| Height To Top Of Cab | 9.49 ft in (2890 mm) |
| Wheelbase | 131.5 in (3340 mm) |
| Ground Clearance | 29.53 in (750 mm) |
| Track Width | 5.91 ft in (1.8 m) |
| Turning Radius - Inside | 13.59 ft in (4140 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | DEUTZ |
| Engine Model | TCD 2.9 L4 |
| Gross Power | 74.3 hp (55.4 kw) |
| Net Power | 74.3 hp (55.4 kw) |
Operational
| Operating Weight Cabin | 17703.2 lb (8030 kg) |
| Operating Weight Rops | 17328.4 lb (7860 kg) |
| Operating Weight | 23104.5 lb (10480 kg) |
| Fuel Capacity | 31.8 gal (120 L) |
| Water Spray Tank Fluid Capacity | 185 gal (700 L) |
| Max Speed | 3.8 mph (6 km/h) |
| Steering Angle | 10 degrees |
Drum
| Drum Thickness | 0.7 in (17 mm) |
| Drum Width | 66.2 in (1680 mm) |
| Drum Diameter | 44.9 in (1140 mm) |
| Static Linear Load | 136.1 lb/in (24.3 kg/cm) |
| Nominal Amplitude - High | 0.1 in (0.6 mm) |
| Nominal Amplitude - Low | 0.1 in (0.4 mm) |
| Centrifugal Force - High | 14163 lb (63 kN) |
| Centrifugal Force - Low | 14163 lb (63 kN) |
