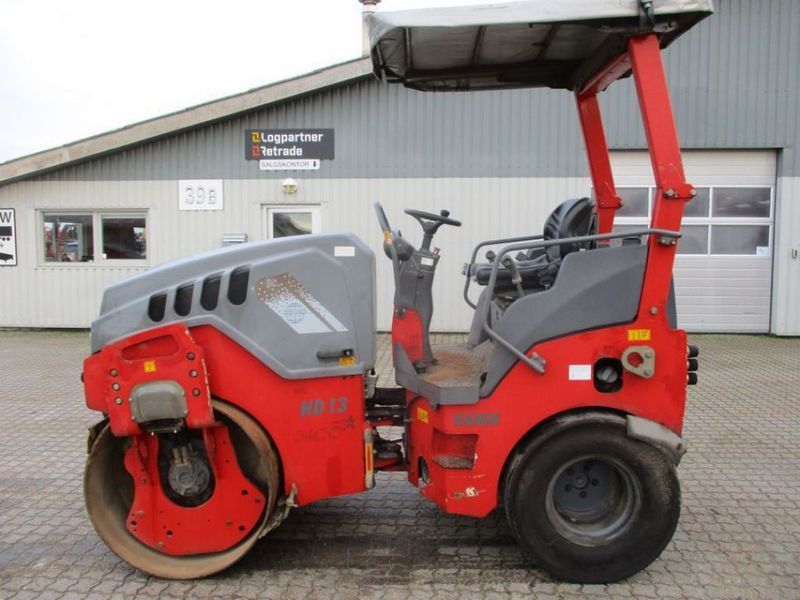

Hamm HD13 VT
Browse All Hamm or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 114.02 in (2896 mm) |
| Overall Width | 4.68 ft in (1426 mm) |
| Height To Top Of Cab | 8.93 ft in (2720 mm) |
| Wheelbase | 76.78 in (1950 mm) |
| Ground Clearance | 28.35 in (720 mm) |
| Turning Radius - Inside | 8.83 ft in (2690 mm) |
| Height With Rops | 8.5 ft in (2590 mm) |
| Width Over Tyres | 50.24 in (1276 mm) |
Engine
| Emission Tier Level | EU Stage IIIA |
| Number Of Cylinders | 4 |
| Engine Make | KUBOTA |
| Engine Model | D1503 |
| Gross Power | 46.4 hp (34.6 kw) |
| Net Power | 46.4 hp (34.7 kw) |
| Power Measured @ | 2700 rpm |
Operational
| Operating Weight Rops | 8432.7 lb (3825 kg) |
| Oscillating Angle | 8 degrees |
| Operating Weight | 10560.2 lb (4790 kg) |
| Fuel Capacity | 19.3 gal (73 L) |
| Water Spray Tank Fluid Capacity | 75.3 gal (285 L) |
| Max Speed | 6.9 mph (11 km/h) |
| Tires | 4 |
| Tires *If Applicable | 10.5/80-16 |
Drum
| Drum Thickness | 0.7 in (17 mm) |
| Drum Width | 51.2 in (1300 mm) |
| Drum Diameter | 35.5 in (900 mm) |
| Static Linear Load | 86.8 lb/in (15.5 kg/cm) |
| Vibration Frequency 1 | 60 Hz |
| Nominal Amplitude - High | 0.1 in (0.6 mm) |
| Vibration Frequency 2 | 51 Hz |
| Nominal Amplitude - Low | 0.1 in (0.4 mm) |
| Centrifugal Force - High | 14387.8 lb (64 kN) |
| Centrifugal Force - Low | 8767.6 lb (39 kN) |
