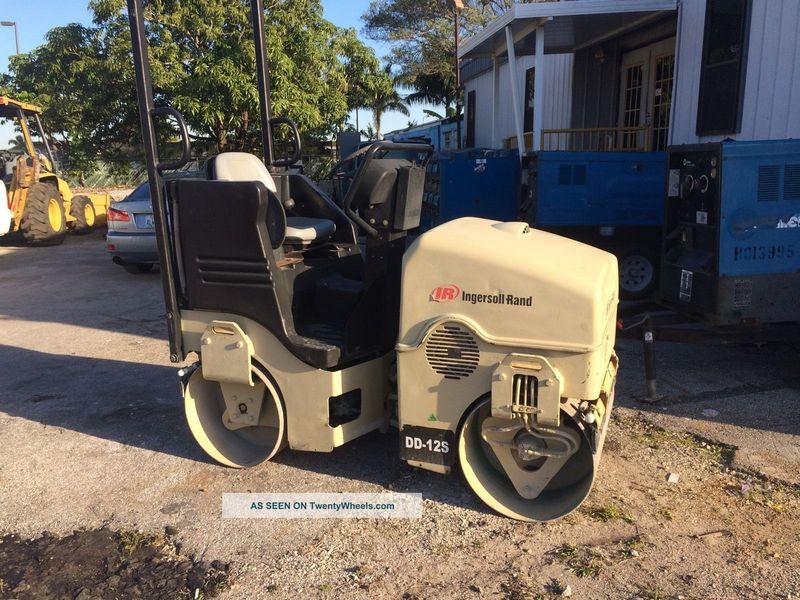

Ingersoll Rand DD12S
Browse All Ingersoll Rand or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 6.68 in (2034 mm) |
| Overall Width | 3.25 ft in (989 mm) |
| Height To Top Of Cab | 7.34 ft in (2235 mm) |
| Wheelbase | 4.6 in (1400 mm) |
| Ground Clearance | 13.27 in (337 mm) |
Engine
| Engine Make | 2361 |
| Gross Power | 16.1 hp (12.1 kw) |
| Displacement | 34.8 cu in (0.6 L) |
Operational
| Operating Weight | 2903.5 lb (1317 kg) |
| Fuel Capacity | 7.1 gal (26.5 L) |
| Hydraulic System Fluid Capacity | 9 gal (34 L) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 15 amps |
Drum
| Drum Width | 35.5 in (900 mm) |
| Drum Diameter | 21.9 in (556 mm) |
| Vibration Frequency 1 | 66.7 Hz |
| Nominal Amplitude - High | 0.1 in (0.4 mm) |
| Centrifugal Force - High | 3304.7 lb (14.7 kN) |
