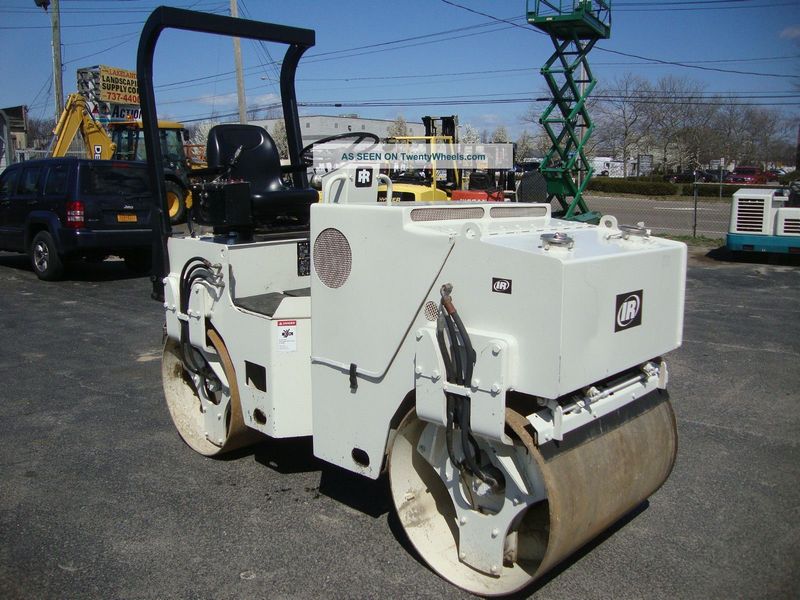

Ingersoll Rand DD22
Browse All Ingersoll Rand or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 7.94 in (2420 mm) |
| Overall Width | 3.58 ft in (1090 mm) |
| Height To Top Of Cab | 8.6 ft in (2621 mm) |
| Wheelbase | 5.65 in (1720 mm) |
Engine
| Engine Make | 2347 |
| Engine Model | A1700 |
| Net Power | 32 hp (23.9 kw) |
Operational
| Operating Weight | 5400 lb (2449.4 kg) |
| Fuel Capacity | 10.6 gal (40.2 L) |
| Hydraulic System Fluid Capacity | 7.1 gal (26.9 L) |
| Max Speed | 6.3 mph (10 km/h) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 45 amps |
Drum
| Drum Width | 39.4 in (1000 mm) |
| Drum Diameter | 27.6 in (700 mm) |
| Vibration Frequency 1 | 55 Hz |
| Nominal Amplitude - Med | 0.1 in (0.6 mm) |
| Vibration Frequency 2 | 67 Hz |
| Centrifugal Force - High | 8318 lb (37 kN) |
| Centrifugal Force - Low | 5620.3 lb (25 kN) |
