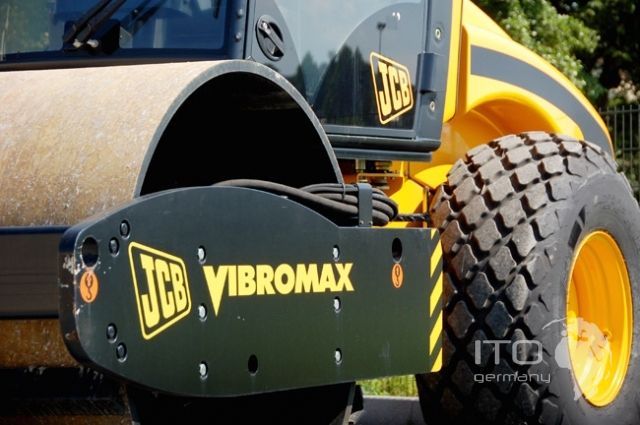

Vibromax VM146D
Browse All Vibromax or Vibratory Smooth Drum Roller Models
Contents:
Dimensions
| Overall Length | 18.78 in (5722 mm) |
| Height To Top Of Cab | 9.63 ft in (2935 mm) |
| Wheelbase | 9.83 in (2996 mm) |
| Ground Clearance | 17.6 in (447 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | B 5.9-173 C |
| Gross Power | 173 hp (129 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 359 cu in (5.9 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 31967.1 lb (14500 kg) |
| Fuel Capacity | 105.7 gal (400 L) |
| Cooling System Fluid Capacity | 5.1 gal (19 L) |
| Engine Oil Capacity | 3.9 gal (14.5 L) |
| Hydraulic System Fluid Capacity | 21.2 gal (80 L) |
| Max Speed | 7.1 mph (11.4 km/h) |
| Tires *If Applicable | 23.1-26/8PR AWT |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 95 amps |
Drum
| Drum Width | 82.7 in (2100 mm) |
| Drum Diameter | 59.1 in (1500 mm) |
| Static Linear Load | 213 lb/in (38.1 kg/cm) |
| Vibration Frequency 1 | 29 Hz |
| Nominal Amplitude - Med | 0.1 in (1.8 mm) |
| Vibration Frequency 2 | 35 Hz |
| Centrifugal Force - Med | 43163.4 lb (192 kN) |
