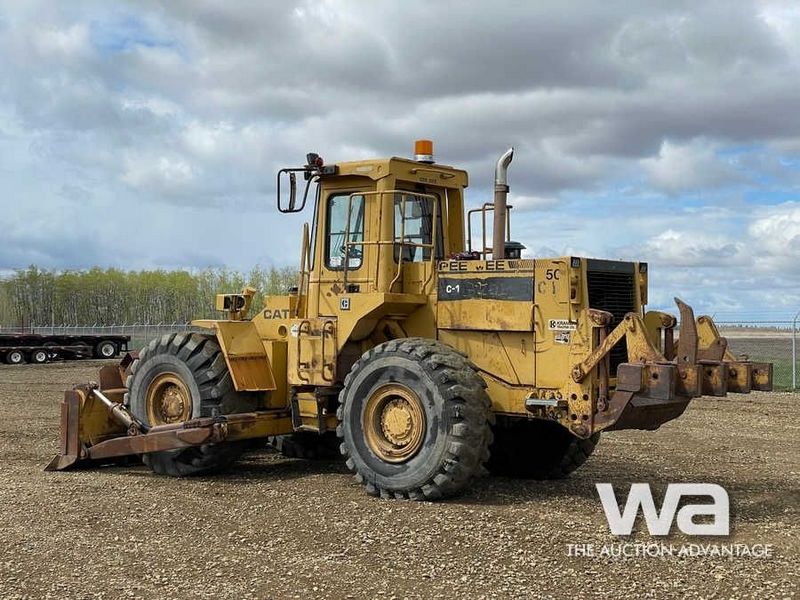

Caterpillar 814B
Browse All Caterpillar or Wheel Dozer Models
Contents:
Dimensions
| Length With Blade On Ground | 22.39 ft in (6823 mm) |
| Width Over Tires | 9.4 ft in (2865 mm) |
| Ground Clearance | 1.38 ft in (419 mm) |
| Height To Top Of Cab | 11.7 ft in (3565 mm) |
| Wheelbase | 11 ft in (3350 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3306 |
| Gross Power | 216 hp (161.1 kw) |
| Displacement | 640.8 cu in (10.5 L) |
Operational
| Operating Weight | 45371.2 lb (20580 kg) |
| Fuel Capacity | 122.1 gal (462 L) |
| Tire Size | 23.5-25 12PR (L-3) |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 18.6 mph (29.9 km/h) |
| Max Speed - Reverse | 21.2 mph (34.1 km/h) |
Blade
| Blade Capacity | 3.9 yd3 (3 m3) |
| Blade Width | ft in (3650 mm) |
| Blade Height | ft in (1004 mm) |
