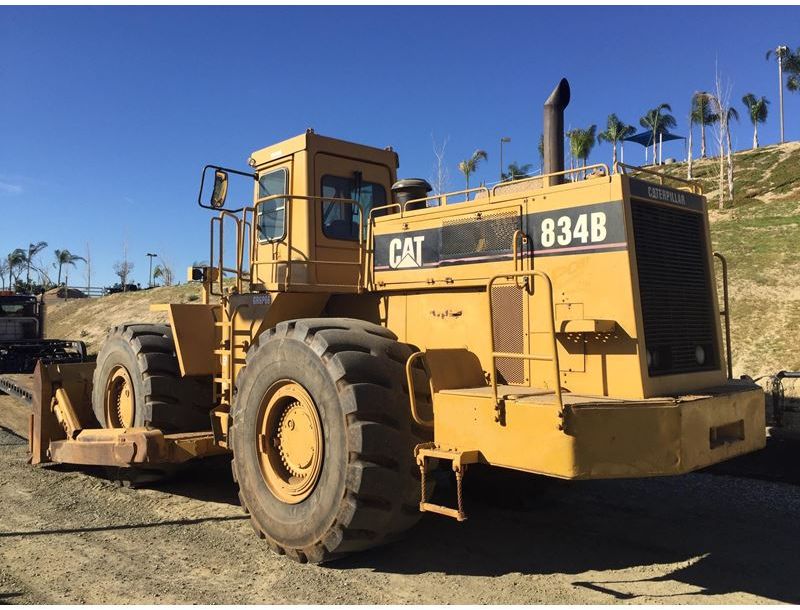

Caterpillar 834B
Browse All Caterpillar or Wheel Dozer Models
Contents:
Dimensions
| Length With Blade On Ground | 28.6 ft in (8716 mm) |
| Width Over Tires | 11.67 ft in (3556 mm) |
| Ground Clearance | 1.53 ft in (466 mm) |
| Height To Top Of Cab | 13.46 ft in (4102 mm) |
| Wheelbase | 12.5 ft in (3810 mm) |
| Length - With Blade On Ground | 28.6 ft in (8.72 m) |
| Height - Top Of Cab | 13.46 ft in (4.11 m) |
| Wheel Base | 12.5 ft in (3.81 m) |
Operating Specifications
| Ground Clearance | 1.5 ft in (0.04 m) |
| Turning Circle - With Blade | 56.5 ft in (17.23 m) |
Engine
| Engine Make | 2236 |
| Engine Model | 3408 |
| Gross Power | 450 hp (335.6 kw) |
| Displacement | 1098.5 cu in (18 L) |
| Engine Model | Cat 3408E HEUI |
| Flywheel Power | 450 hp (335.6 kw) |
Operational
| Operating Weight | 102195.3 lb (46355 kg) |
| Fuel Capacity | 157.2 gal (595 L) |
| Tire Size | 35/65-33 (L-4) |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 21.2 mph (34.1 km/h) |
| Max Speed - Reverse | 26 mph (41.8 km/h) |
| Forward - 1 | 4 mph (6.3 km/h) |
| Forward - 2 | 7.1 mph (11.3 km/h) |
| Forward - 3 | 12.3 mph (19.8 km/h) |
| Forward - 4 | 21.2 mph (34.2 km/h) |
Steering
| Steering Angle | 35 degrees |
Transmission
| Reverse - 1 | 5 mph (8 km/h) |
| Reverse - 2 | 8.7 mph (14.1 km/h) |
| Reverse - 3 | 15.3 mph (24.5 km/h) |
| Reverse - 4 | 26 mph (41.8 km/h) |
Steering
| Turning Radius - With Straight Blade | 20.1 ft in (6.1 m) |
Transmission
| Number Of Forward Speeds | 4 |
| Number Of Reverse Speeds | 4 |
Weights
| Operating Weight | 102213 lb (46363.1 kg) |
Tires
| Standard Tire Size | 35/65-33,24 Pr (L-4) |
Blade
| Blade Capacity | 9.6 yd3 (7.3 m3) |
| Blade Width | ft in (4620 mm) |
| Blade Height | ft in (1448 mm) |
Axles
| Front | Fixed |
| Rear | Oscillates |
| Maximum Single-Wheel Rise And Fall | 22.1 in (559.1 mm) |
Service Refill Capacities
| Cooling System | 28 gal (106 L) |
| Crankcase | 11.1 gal (42.1 L) |
| Fuel Tank - Standard | 157 gal (594.4 L) |
| Transmission | 27 gal (102.1 L) |
| Differential - Final Drives - Front | 38.1 gal (144 L) |
| Differential - Final Drives - Rear | 38.1 gal (144 L) |
Blade Specifications
| Straight Blade - Capacity | 9.6 yd3 (7.3 m3) |
| Moldboard - Length | 15.3 ft in (4.7 m) |
| Maximum Lift Above Ground | 3.7 ft in (1.2 m) |
| Straight Blade - Overall Width | 15.3 ft in (4.7 m) |
| Straight Blade - Height | 4.8 ft in (1.5 m) |
| Straight Blade - Digging Depth | 1.5 ft in (0.5 m) |
| Straight Blade - Ground Clearance | 3.7 ft in (1.2 m) |
| Straight Blade - Maximum Tilt | 4.2 ft in (1.3 m) |
