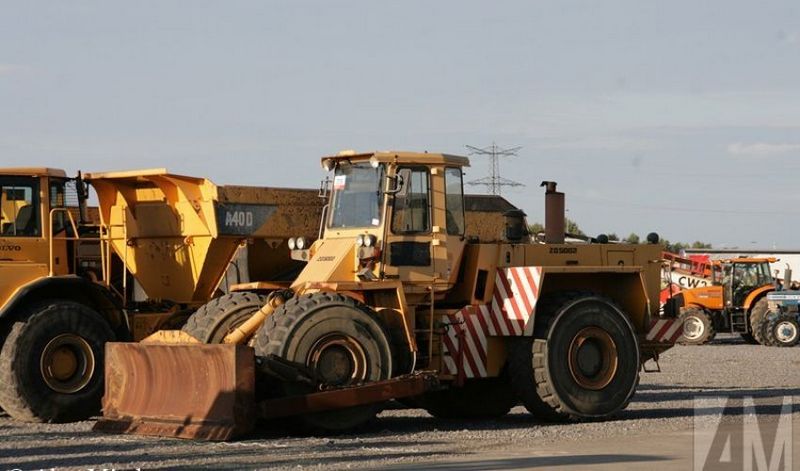

Zettelmeyer ZD5002
Browse All Zettelmeyer or Wheel Dozer Models
Contents:
Dimensions
| Length With Blade On Ground | 24.41 ft in (7440 mm) |
| Width Over Tires | 9.78 ft in (2980 mm) |
| Ground Clearance | 1.71 ft in (520 mm) |
| Height To Top Of Cab | 11.54 ft in (3516 mm) |
| Wheelbase | 12.06 ft in (3675 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | LTA 10-C290 |
| Gross Power | 289.7 hp (216 kw) |
| Net Power | 276.3 hp (206 kw) |
| Power Measured @ | 2100 rpm |
| Net Torque | 870.4 lb ft (1180 Nm) |
| Torque Measured @ | 1300 rpm |
| Displacement | 622.5 cu in (10.2 L) |
| Aspiration | turbo + aftercooled |
Operational
| Operating Weight | 57761.2 lb (26200 kg) |
| Fuel Capacity | 109.7 gal (415 L) |
| Engine Oil Capacity | 7.1 gal (26.5 L) |
| Transmission Fluid Capacity | 5.6 gal (21 L) |
| Hydraulic System Fluid Capacity | 60.8 gal (230 L) |
| Front Diff Fluid Capacity | 13.5 gal (51 L) |
| Rear Diff Fluid Capacity | 14.3 gal (54 L) |
| Steering Angle | 40 degrees |
| Axle Oscillation | 12 degrees |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 65 amps |
| Tire Size | 29.5R25 |
Transmission
| Transmission Type | countershaft transmission full power shift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 21.8 mph (35 km/h) |
| Max Speed - Reverse | 15.6 mph (25 km/h) |
Blade
| Blade Width | 13.2 ft in (4000 mm) |
| Blade Height | 4.4 ft in (1330 mm) |
