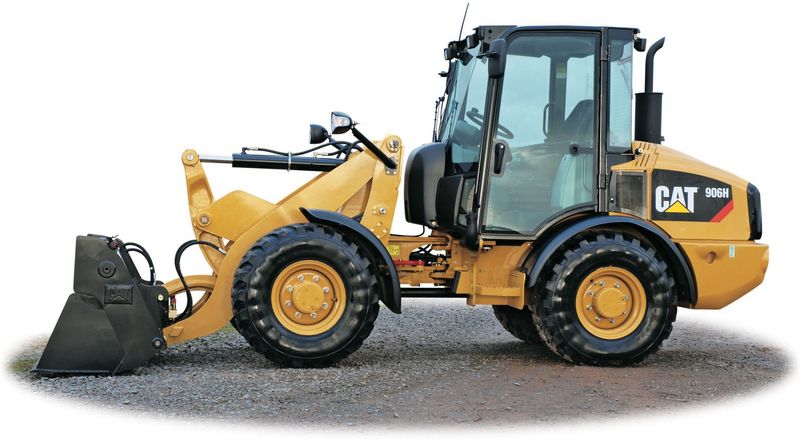

Caterpillar 906H
Browse All Caterpillar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 7.86 ft in (2395 mm) |
| Bucket Width | 6.17 ft in (1880 mm) |
| Bucket Capacity - Heaped | 1.18 yd3 (0.9 m3) |
Dimensions
| Ground Clearance | 0.99 ft in (300 mm) |
| Length With Bucket On Ground | 18.33 ft in (5585 mm) |
| Width Over Tires | 6.04 ft in (1840 mm) |
| Height To Top Of Cab | 8.09 ft in (2465 mm) |
| Wheelbase | 7.12 ft in (2170 mm) |
| Hinge Pin - Max Height | 10.6 ft in (3230 mm) |
| Reach At Max Lift And Dump | 2.66 ft in (810 mm) |
| Wheel Base | 7.1 ft in (2.17 m) |
| Hinge Pin Height | 10.6 ft in (3.24 m) |
| Machine Height | 8.1 ft in (2.47 m) |
Engine
| Engine Make | 2236 |
| Engine Model | C3.4 |
| Net Power | 70 hp (52.2 kw) |
| Gross Power | 74 hp (55.2 kw) |
| Power Measured @ | 2500 rpm |
| Displacement | 203 cu in (3.4 L) |
| Iso 9249 Rating | 71 hp (53 kw) |
| Eec 80/1269 Rating | 71 hp (53 kw) |
| Sae J1349 Rating | 70 hp (52.2 kw) |
Operational
| Operating Weight | 12412.1 lb (5630 kg) |
| Fuel Capacity | 13.8 gal (52 L) |
| Hydraulic System Fluid Capacity | 22.2 gal (84 L) |
| Engine Oil Fluid Capacity | 2.7 gal (10 L) |
| Cooling System Fluid Capacity | 6.4 gal (24 L) |
| Static Tipping Weight | 8785.5 lb (3985 kg) |
| Turning Radius | 7.3 ft in (2222 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
| Tire Size | 405/70 R18 |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 12.5 mph (20 km/h) |
| Max Speed - Reverse | 12.5 mph (20 km/h) |
| Travel Speed 1 | 4.3 mph (7 km/h) |
| Travel Speed 2 | 12.4 mph (20 km/h) |
| High Speed | 21.7 mph (35 km/h) |
Weights
| Operating Weight | 12412 lb (5630 kg) |
Buckets
| Bucket Capacities | 0.75 - 1.2 m3 1.0 - 1.6 yd3 |
Hydraulic System
| Relief Valve Setting | 3400 psi (23442.2 kPa) |
| Pump Flow Capacity | 22 gal/min (83 L/min) |
| Raise Time | 5 sec |
| Dump Time | 2 sec |
| Lower Time | 4 sec |
| Hydraulic Cycle Time - Dump | 2 Seconds |
| Hydraulic Cycle Time - Lift | 5 Seconds |
| Hydraulic Cycle Time - Rackback | 2.5 Seconds |
| Main Relief | 3400 psi |
| Hydraulic Cycle Time - Lower, Float | 4 Seconds |
| 3rd Auxiliary Flow - High Flow | 33 gal/min |
| 3rd Auxiliary Flow - Standard | 22 gal/min |
Operating Specifications
| Breakout Force | 9442 lb (4282.9 kg) |
| Rated Bucket Capacity | 1.2 yd3 (1 m3) |
| Tire Size | 405/70 R18 |
| Full Turn Static Tipping Load - Bucket | 6967 lb (3160.2 kg) |
| Rack Back - Transport Position | 52 degrees |
| Straight Tipping Load - Bucket | 8785 lb (3984.9 kg) |
| Rated Operating Load At Full Turn - Forks (En 474-3:2006, Firm And Level Ground, 500 Mm (20 In) Load Center, Transport 100 Mm (4 In) Above Ground) | 5997 lb (2720.2 kg) |
| Rated Operating Load At Full Turn - Forks (En 474-3:2006, Firm And Level Ground, 500 Mm (20 In) Load Center) (80% Of Ftstl) | 4553 lb (2065.3 kg) |
| Rated Operating Load At Full Turn - Forks (En 474-3:2006, Rough Terrain, 500 Mm (20 In) Load Center) (60% Of Ftstl) | 3415 lb (1549.1 kg) |
| Rated Operating Load At Full Turn | 3483 lb (1579.9 kg) |
Service Refill Capacities
| Cooling System | 6.3 gal (23.9 L) |
| Fuel Tank | 13.7 gal (51.9 L) |
| Hydraulic System | 22.2 gal (84.1 L) |
| Engine Oil | 2.6 gal (9.9 L) |
Cab
| Rops | SAE J1040 MAY94, ISO 3471-1994 |
| Fops | SAE J/ISO 3449 APR98 Level II, ISO 3449 1992 Level II |
Engine Dimensions
| Bore | 3.7 in (94 mm) |
| Stroke | 4.7 in (119.4 mm) |
| Displacement | 203 cu in (3.4 L) |
