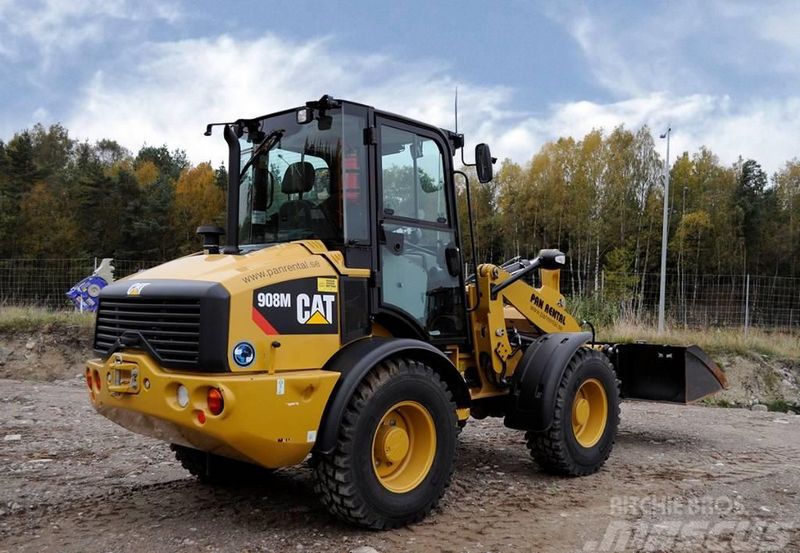

Caterpillar 908
Browse All Caterpillar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.33 ft in (2637 mm) |
| Bucket Capacity - Heaped | 0.8 yd3 (0.6 m3) |
| Bucket Width | 6.75 ft in (2050 mm) |
| Breakout Force | 13710 lb (61 kN) |
Dimensions
| Length With Bucket On Ground | 17.43 ft in (5300 mm) |
| Width Over Tires | 6.42 ft in (1960 mm) |
| Height To Top Of Cab | 9.08 ft in (2770 mm) |
| Wheelbase | 7.25 ft in (2200 mm) |
| Hinge Pin - Max Height | 11.08 ft in (3385 mm) |
| Tread Width | 62.4 in (1584.96 mm) |
Engine
| Net Power | 76 hp (56.7 kw) |
| Gross Power | 84 hp (62.7 kw) |
| Iso 9249 Rating | 80 hp (59.7 kw) |
| Eec 80/1269 Rating | 80 hp (59.7 kw) |
| Sae J1349 Rating | 80 hp (59.7 kw) |
Operational
| Operating Weight | 13288 lb (6040 kg) |
| Fuel Capacity | 21 gal (80 L) |
| Hydraulic System Fluid Capacity | 17 gal (66 L) |
| Engine Oil Fluid Capacity | 2.6 gal (10 L) |
| Cooling System Fluid Capacity | 5.8 gal (22 L) |
| Transmission Fluid Capacity | 2.6 gal (10 L) |
| Static Tipping Weight | 9636 lb (4380 kg) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 90 amps |
| Rear Axle Oscillation | 22 degrees |
| Tire Size | 12.5-18 |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 12 mph (20 km/h) |
| Max Speed - Reverse | 12 mph (20 km/h) |
Weights
| Operating Weight | 13288 lb (6027.4 kg) |
Buckets
| Bucket Width | 6.9 ft in (2.2 m) |
Hydraulic System
| Relief Valve Setting | 3400 psi (235 kPa) |
| Pump Flow Capacity | 15.9 gal/min (60 L/min) |
| Raise Time | 4.5 sec |
| Dump Time | 2.4 sec |
| Lower Time | 3.2 sec |
| Pump Type | Gear |
| Hydraulic Cycle Time - Dump | 2.4 |
| Hydraulic Cycle Time - Lift | 4.5 |
| Main Relief | 3400 psi |
| Hydraulic Cycle Time - Lower, Float | 3.2 |
| 3rd Valve Flow | 21.6 gal/min |
| Pressure Flow At 2,600 Rpm And 70 Bar (1,000 Psi) | 15.9 gal/min |
Operating Specifications
| Breakout Force | 13710 lb (6218.8 kg) |
| Rated Bucket Capacity | 1.3 yd3 (1 m3) |
| Dump Height At Full Lift | 10.4 ft in (3.2 m) |
| Articulation | 40 degrees |
| Oscillation +/- | 11 degrees |
| Full Turn Static Tipping Load - Bucket | 8270 lb (3751.3 kg) |
| Rack Back - Transport Position | 56 degrees |
| Rated Operating Load At Full Turn - Bucket | 4136 lb (1876.1 kg) |
| Hydraulic Lift Capacity | 9900 lb (4490.6 kg) |
| Straight Tipping Load - Bucket | 9636 lb (4370.9 kg) |
| Reach - Without Teeth | 2.8 ft in (0.9 m) |
| Rated Operating Load At Full Turn - Forks | 5291 lb (2400 kg) |
| Full Turn Static Tipping Load - Forks | 6860 lb (3111.7 kg) |
Service Refill Capacities
| Cooling System | 5.8 gal (22 L) |
| Fuel Tank | 21 gal (79.5 L) |
| Hydraulic System | 17 gal (64.4 L) |
| Engine Oil | 2.6 gal (9.9 L) |
Cab
| Rops | meets the following criteria: SAE J1040 MAY94, ISO 3471-1:1986 |
| Fops | meets the following criteria: SAE J231 JAN81, ISO 3449:1992 |
| Sound | Sound level is below 75 dB(A) |
Maximum Material Densities
| General Purpose Bucket - 0.6 M3 (0.8 Yd3) | 3760 lb/yd |
| Multi Purpose Bucket - 0.6 M3 (0.8 Yd3) | 3300 lb/yd |
| Light Material - Bucket 1.0 M3 (1.3 Yd3) | 1675 lb/yd |
| Side Dump Bucket | 3105 lb/yd |
| High Dump Bucket - 0.7 M3 (0.8 Yd3) | 3230 lb/yd |
| Stone Sieve Bucket - 0.6 M3 (0.8 Yd3) | 3380 lb/yd |
Engine Dimensions
| Bore | 3.7 in (94 mm) |
| Stroke | 4.8 in (119.9 mm) |
Power Train, Axles And Brakes
| Transmission Type | Closed-loop, two-speed hydrostatic single-path transmission. |
| Maximum Travel Speeds - With 12.5-18 Tires, Forward And Reverse, Low | 4 mph (6.5 km/h) |
| Maximum Travel Speeds - Forward And Reverse, High | 12 mph (19.4 km/h) |
| Axle And Final Drives | fixed front axle with limited slip differential and planetary ge |
| Service And Parking Brake | Are combined in a single, dry-disc driveline brake |
| Brake Standards | Brake meets ISO 3450:1996 |
