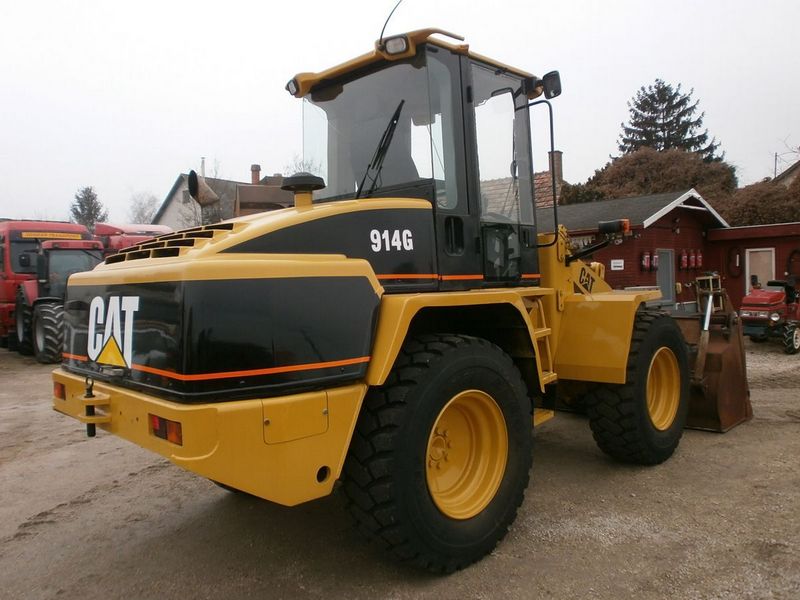

Caterpillar 914G
Browse All Caterpillar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.75 ft in (2659 mm) |
| Bucket Capacity - Heaped | 1.7 yd3 (1.3 m3) |
| Bucket Capacity - Struck | 1.4 yd3 (1.11 m3) |
| Bucket Width | 7.83 ft in (2401 mm) |
| Breakout Force | 14007 lb (62 kN) |
Dimensions
| Ground Clearance | 1.5 ft in (456 mm) |
| Length With Bucket On Ground | 20.43 ft in (6229 mm) |
| Width Over Tires | 7.92 ft in (2434 mm) |
| Height To Top Of Cab | 10.17 ft in (3100 mm) |
| Wheelbase | 8.5 ft in (2600 mm) |
| Hinge Pin - Max Height | 11.25 ft in (3435 mm) |
| Reach At Max Lift And Dump | 3.17 ft in (973 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3054 Turbocharged diesel |
| Net Power | 96 hp (71.6 kw) |
| Gross Power | 100 hp (74.6 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 268.6 cu in (4.4 L) |
Operational
| Operating Weight | 16262 lb (7378 kg) |
| Fuel Capacity | 39.6 gal (150 L) |
| Hydraulic System Fluid Capacity | 26.4 gal (100 L) |
| Engine Oil Fluid Capacity | 1.8 gal (7 L) |
| Cooling System Fluid Capacity | 5.8 gal (22 L) |
| Front Axle/Diff Fluid Capacity | 4 gal (15 L) |
| Rear Axle/Diff Fluid Capacity | 4 gal (15 L) |
| Static Tipping Weight | 11737 lb (5323 kg) |
| Turning Radius | 15.6 ft in (4748 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 60 amps |
| Rear Axle Oscillation | 22 degrees |
| Tire Size | 17.5-R25,radial(L-2/L3 equivalent) |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 21.7 mph (35 km/h) |
| Max Speed - Reverse | 21.7 mph (35 km/h) |
Hydraulic System
| Relief Valve Setting | 3560 psi (24550 kPa) |
| Pump Flow Capacity | 23.8 gal/min (90 L/min) |
| Raise Time | 5.6 sec |
| Dump Time | 2.1 sec |
| Lower Time | 3.2 sec |
| Pump Type | fixed displacement |
