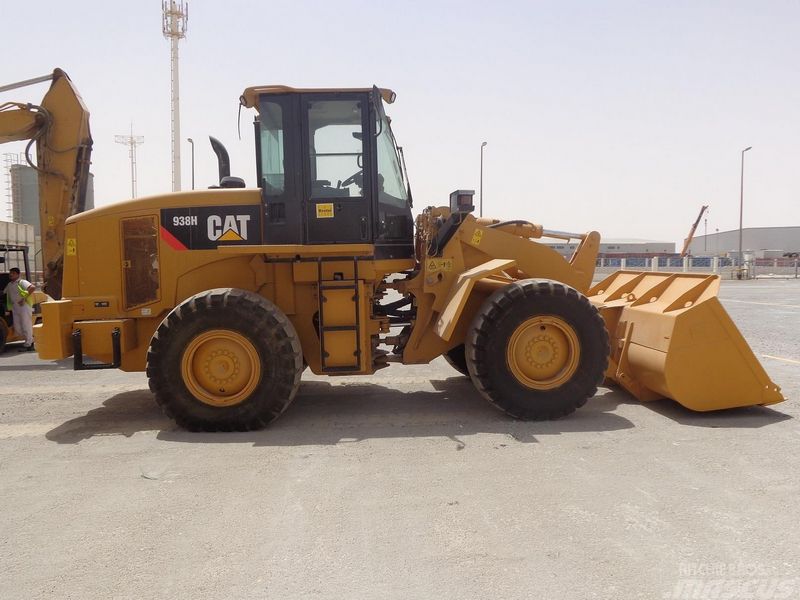

Caterpillar 938H
Browse All Caterpillar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.08 ft in (2771 mm) |
| Bucket Capacity - Heaped | 3.65 yd3 (2.8 m3) |
| Bucket Capacity - Struck | 3.15 yd3 (2.41 m3) |
| Bucket Width | 8.83 ft in (2700 mm) |
| Breakout Force | 27576 lb (122.7 kN) |
Dimensions
| Ground Clearance | 1.25 ft in (381 mm) |
| Length With Bucket On Ground | 24.08 ft in (7343 mm) |
| Width Over Tires | 8.75 ft in (2674 mm) |
| Height To Top Of Cab | 11 ft in (3356 mm) |
| Wheelbase | 9.83 ft in (3020 mm) |
| Hinge Pin - Max Height | 12.58 ft in (3843 mm) |
| Reach At Max Lift And Dump | 3.5 ft in (1077 mm) |
| Overall Length | 23.58 ft in (7187.19 mm) |
| Rack Back Angle - Carry | 50 degrees |
| Rack Back Angle - Maximum Lift | 65 degrees |
| Reach At Maximum Lift And 45 Degrees Dump | 3.25 ft in (1 m) |
| Wheel Base | 9.81 ft in (2.99 m) |
| Dump Clearance At Maximum Lift - 45 Degrees | 9.42 ft in (2.88 m) |
| Bucket Pin Height - Maximum Lift | 12.58 ft in (3.84 m) |
| Dump Angle At Maximum Lift | 50 degrees |
| Height - Top Of Rops/Fops | 11 ft in (3.36 m) |
| Digging Depth | 1.9 in (48.26 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2236 |
| Engine Model | 6.6 ACERT |
| Net Power | 180 hp (134 kw) |
| Gross Power | 197 hp (147 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 620 lb ft (840 Nm) |
| Displacement | 402.8 cu in (6.7 L) |
| Torque Rise | 38 % |
| Bore | 4.1 in (104.2 mm) |
| Stroke | 5 in (127 mm) |
| Eec 80/1269 | 180 hp (134.3 kw) |
| Rated Net Power | 172 hp (128.3 kw) |
| Sae J1349 | 172 hp (128.3 kw) |
| Iso 9249 (1997) | 180 hp (134.3 kw) |
Operational
| Operating Weight | 33190 lb (15059 kg) |
| Fuel Capacity | 65.3 gal (247 L) |
| Hydraulic System Fluid Capacity | 23.5 gal (89 L) |
| Engine Oil Fluid Capacity | 4.6 gal (17.4 L) |
| Cooling System Fluid Capacity | 9.5 gal (36 L) |
| Transmission Fluid Capacity | 11.4 gal (43 L) |
| Front Axle/Diff Fluid Capacity | 15.1 gal (57 L) |
| Rear Axle/Diff Fluid Capacity | 14 gal (53 L) |
| Static Tipping Weight | 25551 lb (11593 kg) |
| Turning Radius | 39.5 ft in (12024 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 20.5R25 |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 26.8 mph (43.2 km/h) |
| Max Speed - Reverse | 15.8 mph (25.5 km/h) |
| Forward - 1 | 5 mph (8.1 km/h) |
| Reverse - 1 | 5 mph (8.1 km/h) |
| 2 | 9.1 mph (14.7 km/h) |
| 3 | 15.8 mph (25.5 km/h) |
| 4 | 26.8 mph (43.2 km/h) |
Weights
| Operating Weight | 33190 lb (15054.8 kg) |
Tires
| Size | 20.5 R25 |
Buckets
| Bucket Capacities | 2.3 m3 - 3.0 m3 3.0 yd3 - 4.0 yd3 |
Hydraulic System
| Relief Valve Setting | 1000 psi (6900 kPa) |
| Pump Flow Capacity | 77.9 gal/min (295 L/min) |
| Raise Time | 5.4 sec |
| Dump Time | 1.4 sec |
| Lower Time | 2.7 sec |
| Pump Type | Piston |
Operating Specifications
| Static Tipping Load - Full Turn | 22207 lb (10073 kg) |
| Breakout Force | 27576 lb (12508.3 kg) |
| Dump Clearance At Full Lift And 45 Degrees Dump Angle | 9.4 ft in (2.9 m) |
Service Refill Capacities
| Cooling System | 9.5 gal (36 L) |
| Fuel Tank | 65.3 gal (247.2 L) |
| Crankcase | 4.6 gal (17.5 L) |
| Hydraulic Tank | 23.5 gal (89 L) |
| Transmission | 11.4 gal (43.2 L) |
Cab
| Rops | SAE J1040 APR88, ISO 3471:1994 |
| Fops | SAE J1040 APR88, ISO 3471:1994 |
Loader Hydraulic System
| Raise | 5.4 s |
| Dump | 1.4 s |
| Lower, Empty, Float Down | 2.7 s |
| Total | 9.8 s |
| Hydraulic Cycle Time | 9.5 |
