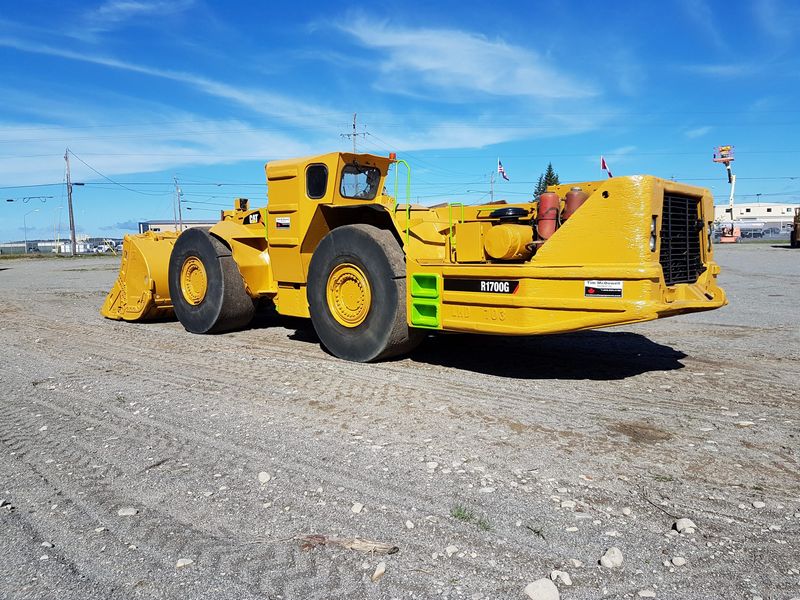

Caterpillar R1700G
Browse All Caterpillar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.02 ft in (2443 mm) |
| Bucket Width | 9.1 ft in (2772 mm) |
| Bucket Capacity - Heaped | 7.5 yd3 (5.7 m3) |
Dimensions
| Ground Clearance | 1.41 ft in (429 mm) |
| Length With Bucket On Ground | 34.75 ft in (10589 mm) |
| Width Over Tires | 8.7 ft in (2650 mm) |
| Height To Top Of Cab | 8.39 ft in (2557 mm) |
| Wheelbase | 12.08 ft in (3680 mm) |
| Hinge Pin - Max Height | 13.47 ft in (4104 mm) |
| Reach At Max Lift And Dump | 5.72 ft in (1741 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | C11 ACERT |
| Net Power | 323 hp (241 kw) |
| Gross Power | 353 hp (263 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 680 cu in (11.1 L) |
Operational
| Operating Weight | 115745 lb (52500 kg) |
| Fuel Capacity | 1505 gal (570 L) |
| Hydraulic System Fluid Capacity | 33 gal (125 L) |
| Engine Oil Fluid Capacity | 9 gal (34 L) |
| Cooling System Fluid Capacity | 16.6 gal (63 L) |
| Transmission Fluid Capacity | 12.4 gal (47 L) |
| Front Axle/Diff Fluid Capacity | 23.8 gal (90 L) |
| Rear Axle/Diff Fluid Capacity | 23.8 gal (90 L) |
| Static Tipping Weight | 70065 lb (31781 kg) |
| Turning Radius | 22.6 ft in (6878 mm) |
| Rear Axle Oscillation | 16 degrees |
| Tire Size | 26.5 x 25 36 PLY STMS L5S |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 15 mph (24.1 km/h) |
| Max Speed - Reverse | 15.7 mph (25.3 km/h) |
Hydraulic System
| Raise Time | 6.8 sec |
| Dump Time | 2.9 sec |
| Lower Time | 2.4 sec |
