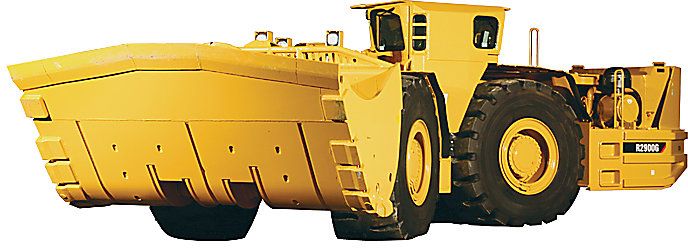

Caterpillar R2900G XTRA
Browse All Caterpillar or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 20.46 ft in (6235 mm) |
| Bucket Capacity - Heaped | 11.7 yd3 (8.9 m3) |
| Bucket Width | 11.34 ft in (3454 mm) |
| Breakout Force | 55340 lb (55340 -) |
Dimensions
| Ground Clearance | 1.54 ft in (467.36 mm) |
| Length With Bucket On Ground | 36.37 ft in (11083 mm) |
| Width Over Tires | 11.34 ft in (3454 mm) |
| Height To Top Of Cab | 9.81 ft in (2988 mm) |
| Wheelbase | 12.41 ft in (3780 mm) |
| Hinge Pin - Max Height | 14.9 ft in (4541 mm) |
Engine
| Engine Make | 2236 |
| Engine Model | 3406E EUI ATAAC |
| Net Power | 378 hp (281.9 kw) |
| Gross Power | 410 hp (305.8 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 893.9 cu in (14.6 L) |
Operational
| Operating Weight | 123459 lb (56000 kg) |
| Fuel Capacity | 225.6 gal (854 L) |
| Hydraulic System Fluid Capacity | 37 gal (140.1 L) |
| Engine Oil Fluid Capacity | 9 gal (34.1 L) |
| Cooling System Fluid Capacity | 19.8 gal (75 L) |
| Transmission Fluid Capacity | 16.4 gal (62.1 L) |
| Front Axle/Diff Fluid Capacity | 31.4 gal (118.9 L) |
| Rear Axle/Diff Fluid Capacity | 33.5 gal (126.9 L) |
| Static Tipping Weight | 100940 lb (45782 kg) |
| Turning Radius | 295.7 ft in (7511 mm) |
| Tire Size | 36/65R33 VSDL Radials |
Transmission
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 15 mph (24.2 km/h) |
| Max Speed - Reverse | 16.8 mph (27 km/h) |
Hydraulic System
| Raise Time | 7.6 sec |
| Dump Time | 2.8 sec |
| Lower Time | 2.4 sec |
