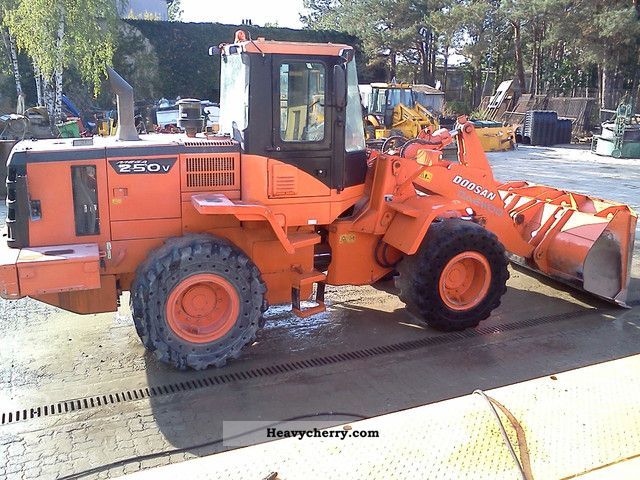

Daewoo MEGA250-V
Browse All Daewoo or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.06 ft in (2760 mm) |
| Bucket Capacity - Heaped | 3.14 yd3 (2.4 m3) |
| Bucket Width | 8.99 ft in (2740 mm) |
| Breakout Force | 29101 lb (29101 -) |
Dimensions
| Ground Clearance | 1.42 ft in (430 mm) |
| Length With Bucket On Ground | 24.61 ft in (7500 mm) |
| Width Over Tires | 8.41 ft in (2563 mm) |
| Height To Top Of Cab | 10.9 ft in (3320 mm) |
| Wheelbase | 9.91 ft in (3020 mm) |
| Hinge Pin - Max Height | 12.77 ft in (3890 mm) |
| Reach At Max Lift And Dump | 3.81 ft in (1160 mm) |
Engine
| Engine Make | 2253 |
| Engine Model | D1146T |
| Net Power | 152.9 hp (114 kw) |
| Gross Power | 162.3 hp (121 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 542.9 lb ft (736 Nm) |
| Displacement | 353.1 cu in (5.8 L) |
| Aspiration | turbocharged |
Operational
| Operating Weight | 30864.8 lb (14000 kg) |
| Fuel Capacity | 71.4 gal (270 L) |
| Hydraulic System Fluid Capacity | 51.6 gal (195 L) |
| Engine Oil Fluid Capacity | 5.6 gal (21 L) |
| Cooling System Fluid Capacity | 13.3 gal (50 L) |
| Transmission Fluid Capacity | 7.2 gal (27 L) |
| Front Axle/Diff Fluid Capacity | 8.2 gal (31 L) |
| Rear Axle/Diff Fluid Capacity | 6.4 gal (24 L) |
| Static Tipping Weight | 26455.5 lb (12000 kg) |
| Turning Radius | 19.9 ft in (6051 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 60 amps |
| Rear Axle Oscillation | 22 degrees |
| Tire Size | 20.5-25-16PR |
Transmission
| Transmission Type | full power shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23 mph (37 km/h) |
| Max Speed - Reverse | 15.3 mph (24.5 km/h) |
Hydraulic System
| Relief Valve Setting | 2900.8 psi (20000 kPa) |
| Pump Flow Capacity | 66.1 gal/min (250 L/min) |
| Raise Time | 5.3 sec |
| Dump Time | 1.2 sec |
| Lower Time | 3.3 sec |
| Pump Type | tandem vane pumps |
