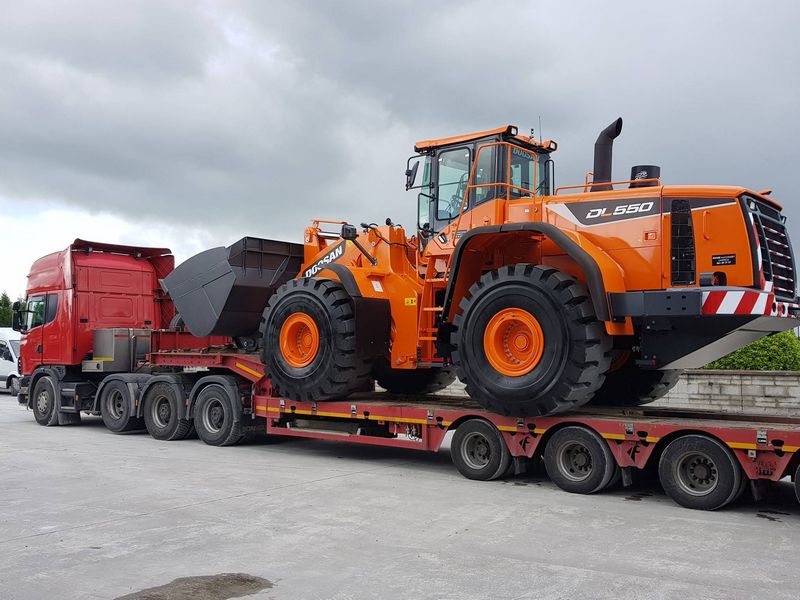

Doosan DL550-5
Browse All Doosan or Wheel Loader Models
Contents:
Bucket
| Bucket Capacity - Heaped | 7.46 yd3 (5.7 m3) |
| Bucket Width | 11.18 ft in (3405 mm) |
| Breakout Force | 55303 lb (246 kN) |
Dimensions
| Ground Clearance | 1.58 ft in (480 mm) |
| Width Over Tires | 14.63 ft in (4458 mm) |
| Wheelbase | 12.14 ft in (3700 mm) |
| Hinge Pin - Max Height | 15.74 ft in (4795 mm) |
| Reach At Max Lift And Dump | 4.2 ft in (1280 mm) |
| Overall Height | 12.42 ft in (3785 mm) |
| Overall Length | 31.76 ft in (9680 mm) |
| Digging Depth | 3.15 in (80 mm) |
Engine
| Starter | 8 hp (6 kw) |
| Horsepower -Net | 271 hp (202.1 kw) |
| Number Of Cylinders | 6 |
| Engine Make | Scania |
| Engine Model | DC13 |
| Gross Power | 380 hp (283.4 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 775.1 cu in (12.7 L) |
| Net Torque | 1121.1 lb ft (1520 Nm) |
| Torque Measured @ | 1400 rpm |
| Bore | 5.2 in (130 mm) |
| Stroke | 6.3 in (160 mm) |
| Alternator | 100 amps |
Capacities
| Fuel Tank | 117 gal (442.9 L) |
| Diesel Exhaust Fluid (Def) Tank | 16 gal (60.6 L) |
| Cooling System | 16 gal (60.6 L) |
| Transmission | 14 gal (53 L) |
| Hydraulic System | 65 gal (246.1 L) |
| Engine Oil | 12 gal (45.5 L) |
Operational
| Operating Weight | 69897.6 lb (31705 kg) |
| Front Axle/Diff Fluid Capacity | 16.5 gal (62.5 L) |
| Rear Axle/Diff Fluid Capacity | 16.9 gal (64 L) |
| Static Tipping Weight | 53175.5 lb (24120 kg) |
| Operating Voltage | 28 V |
| Tire Size | 29.5-25 |
Transmission
| Max Speed - Forward | 22.4 mph (36.1 km/h) |
| Max Speed - Reverse | 16.1 mph (26 km/h) |
Hydraulic System
| Raise Time | 6.4 sec |
| Dump Time | 1.4 sec |
| Lower Time | 4.2 sec |
| Relief Valve Pressure | 3989 psi (27503.2 kPa) |
