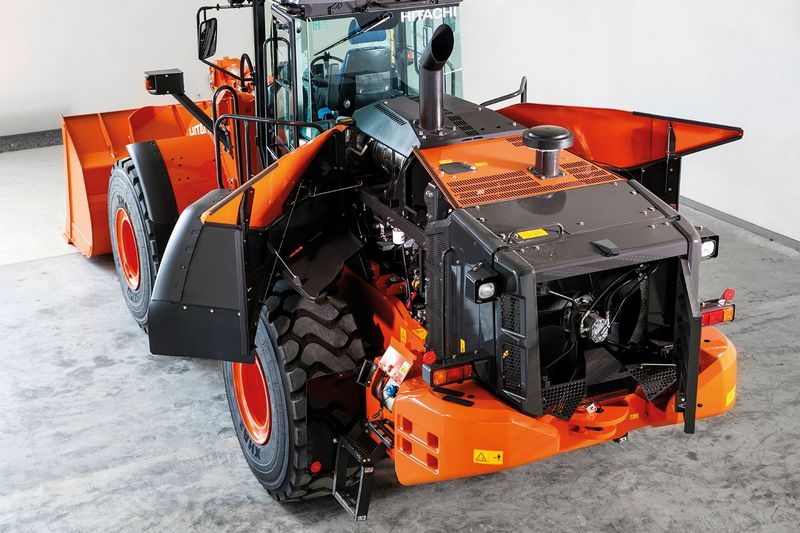

Hitachi ZW-310
Browse All Hitachi or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.85 ft in (3000 mm) |
| Bucket Capacity - Heaped | 5.11 yd3 (3.9 m3) |
| Bucket Capacity - Struck | 4.32 yd3 (3.3 m3) |
| Bucket Width | 10.34 ft in (3150 mm) |
| Breakout Force | 47884.31 lb (213 kN) |
Dimensions
| Ground Clearance | 1.6 ft in (485 mm) |
| Length With Bucket On Ground | 29.37 ft in (8950 mm) |
| Width Over Tires | 9.88 ft in (3010 mm) |
| Height To Top Of Cab | 11.37 ft in (3465 mm) |
| Wheelbase | 11.32 ft in (3450 mm) |
| Hinge Pin - Max Height | 14.42 ft in (4395 mm) |
| Reach At Max Lift And Dump | 4.27 ft in (1300 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2346 |
| Engine Model | OM460LA |
| Net Power | 295 hp (220 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 782.1 cu in (12.9 L) |
| Aspiration | Turbocharger & intercooled |
Operational
| Operating Weight | 49119 lb (22280 kg) |
| Fuel Capacity | 101 gal (382 L) |
| Hydraulic System Fluid Capacity | 33.9 gal (128 L) |
| Engine Oil Fluid Capacity | 10.4 gal (39 L) |
| Cooling System Fluid Capacity | 15.6 gal (59 L) |
| Transmission Fluid Capacity | 6.7 gal (25 L) |
| Front Axle/Diff Fluid Capacity | 12.7 gal (48 L) |
| Rear Axle/Diff Fluid Capacity | 12.7 gal (48 L) |
| Static Tipping Weight | 38801.4 lb (17600 kg) |
| Turning Radius | 19.4 ft in (5900 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 amps |
| Rear Axle Oscillation | 26 degrees |
| Tire Size | 26.5-25-16PR (L3) |
Transmission
| Transmission Type | Torque converter, countershaft type powershift with computer-controlled automatic shift and manual shit features included |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 21.5 mph (34.5 km/h) |
| Max Speed - Reverse | 21.5 mph (34.5 km/h) |
Hydraulic System
| Raise Time | 5.8 sec |
| Dump Time | 1.4 sec |
| Lower Time | 3 sec |
| Pump Type | variable displacement axial plunger pump |
