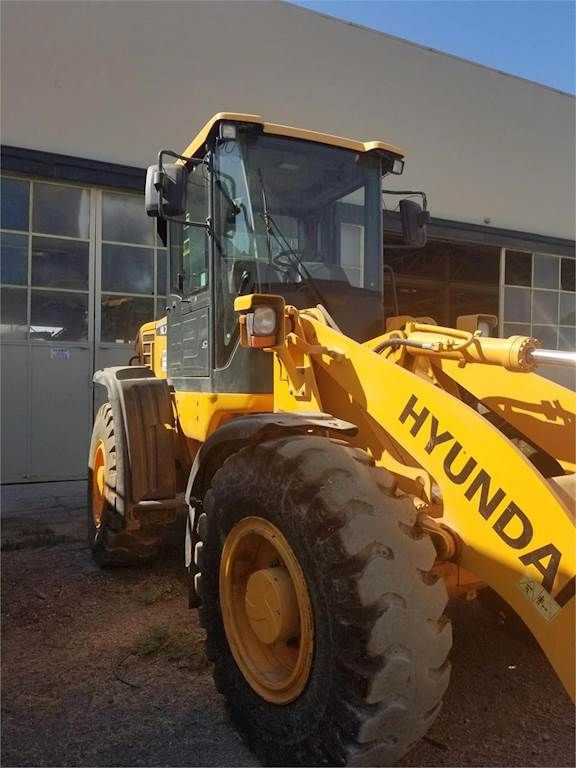

Hyundai HL730XTD-7
Browse All Hyundai or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.04 ft in (3060 mm) |
| Bucket Capacity - Heaped | 2.4 yd3 (1.84 m3) |
| Bucket Capacity - Struck | 2 yd3 (1.53 m3) |
| Breakout Force | 20990 lb (93.37 kN) |
Dimensions
| Ground Clearance | 1.22 ft in (370 mm) |
| Length With Bucket On Ground | 23.63 ft in (7200 mm) |
| Width Over Tires | 8.04 ft in (2450 mm) |
| Height To Top Of Cab | 10.41 ft in (3170 mm) |
| Wheelbase | 9.03 ft in (2750 mm) |
| Hinge Pin - Max Height | 13.03 ft in (3970 mm) |
| Reach At Max Lift And Dump | 3.32 ft in (1010 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2347 |
| Engine Model | B3.9C |
| Net Power | 119 hp (88.8 kw) |
| Gross Power | 125 hp (93.3 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 373 lb ft (505.8 Nm) |
| Displacement | 238 cu in (3.9 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 21830 lb (9902 kg) |
| Fuel Capacity | 53.4 gal (202 L) |
| Hydraulic System Fluid Capacity | 42.3 gal (160 L) |
| Engine Oil Fluid Capacity | 3 gal (11 L) |
| Cooling System Fluid Capacity | 8 gal (30 L) |
| Transmission Fluid Capacity | 5.3 gal (20 L) |
| Front Axle/Diff Fluid Capacity | 4.9 gal (18.4 L) |
| Rear Axle/Diff Fluid Capacity | 4.9 gal (18.4 L) |
| Static Tipping Weight | 15476.5 lb (7020 kg) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 17.5-25 12PR L3 |
Transmission
| Transmission Type | full automatic power shift, countershaft type |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23 mph (37 km/h) |
| Max Speed - Reverse | 14.5 mph (23.3 km/h) |
Hydraulic System
| Relief Valve Setting | 2990 psi (20615.4 kPa) |
| Pump Flow Capacity | 37 gal/min (140 L/min) |
| Raise Time | 5.4 sec |
| Dump Time | 1 sec |
| Lower Time | 2.6 sec |
| Pump Type | helical gear type |
