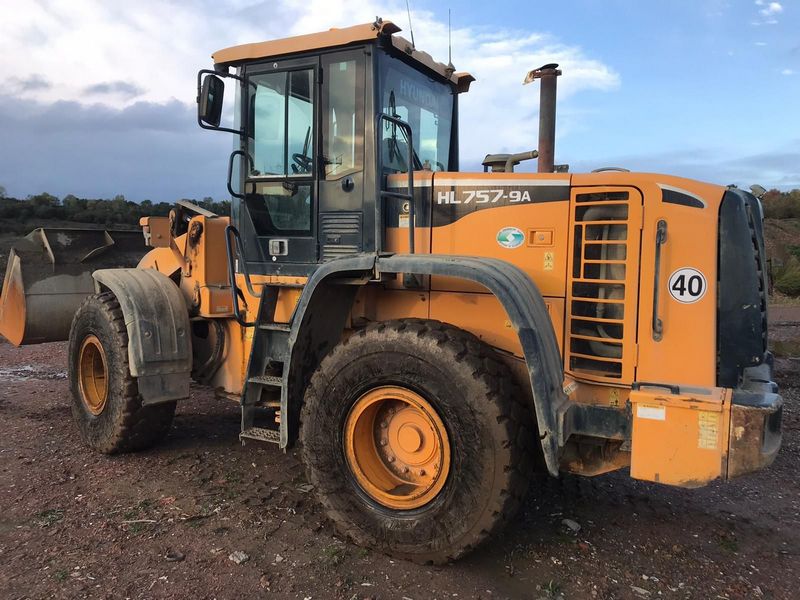

Hyundai HL757-9A
Browse All Hyundai or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.32 ft in (2840 mm) |
| Digging Depth | 0.28 ft in (85 mm) |
| Bucket Width | 8.99 ft in (2740 mm) |
Dimensions
| Ground Clearance | 1.35 ft in (410 mm) |
| Length With Bucket On Ground | 24.87 ft in (7580 mm) |
| Height To Top Of Cab | 10.86 ft in (3310 mm) |
| Wheelbase | 10.01 ft in (3050 mm) |
| Reach At Max Lift And Dump | 3.52 ft in (1070 mm) |
Electrical System
| Starter Motor | 24V,7.8kw |
Engine
| Emissions Certification | Stage III-A |
| Number Of Cylinders | 6 |
| Max Torque Iso Tr14396 | 685 lb ft (928.8 Nm) |
| Engine Make | CUMMINS |
| Engine Model | QSB6.7 |
| Engine Type | Watercooled |
| Net Power | 197 hp (147 kw) |
| Air Cleaner | Dry, Two stages dual elements |
| Gross Power | 200 hp (149.2 kw) |
| Displacement | 408.9 cu in (6.7 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged |
| Bore | 4.3 in (107 mm) |
| Stroke | 4.9 in (124 mm) |
Operational
| Operating Weight | 32408 lb (14700 kg) |
| Fuel Capacity | 77.7 gal (294 L) |
| Hydraulic System Fluid Capacity | 53.4 gal (202 L) |
| Cooling System Fluid Capacity | 12.2 gal (46 L) |
| Transmission Fluid Capacity | 7.4 gal (28 L) |
| Front Axle/Diff Fluid Capacity | 8.5 gal (32 L) |
| Rear Axle/Diff Fluid Capacity | 6.4 gal (24 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 26 degrees |
| Tire Size | 20.5-25, L3 |
Transmission
| Transmission Type | Full automatic power shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23.9 mph (38.5 km/h) |
| Max Speed - Reverse | 15.1 mph (24.4 km/h) |
Hydraulic System
| Pump Flow Capacity | 48.9 gal/min (185 L/min) |
| Raise Time | 5.9 sec |
| Dump Time | 1.8 sec |
| Lower Time | 3.7 sec |
| Pump Type | Variable axial piston |
| Relief Valve Pressure | 3555 psi (24510.9 kPa) |
Brakes
| Parking Brake | Spring-applied |
| Service Brake | Hydraulically actuated |
| Emergency Brake | Parking brake automatically applies. |
