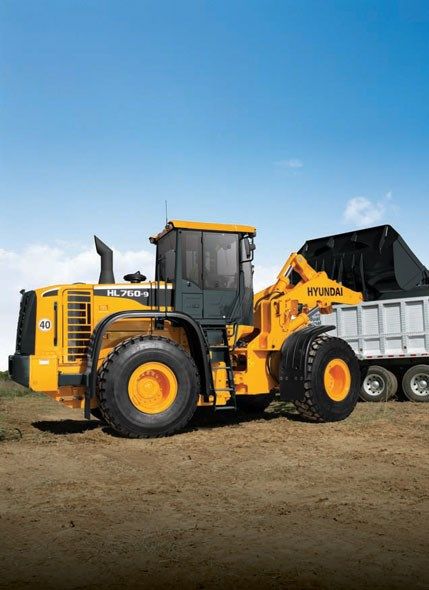

Hyundai HL760-9
Browse All Hyundai or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.75 ft in (2970 mm) |
| Bucket Capacity - Struck | 3.67 yd3 (2.8 m3) |
| Bucket Width | 9.52 ft in (2900 mm) |
| Bucket Capacity - Heaped | 4.32 yd3 (3.3 m3) |
Dimensions
| Ground Clearance | 1.38 ft in (420 mm) |
| Length With Bucket On Ground | 26.58 ft in (8100 mm) |
| Width Over Tires | 9.09 ft in (2770 mm) |
| Height To Top Of Cab | 11.32 ft in (3450 mm) |
| Wheelbase | 10.83 ft in (3300 mm) |
| Hinge Pin - Max Height | 13.47 ft in (4105 mm) |
| Reach At Max Lift And Dump | 4.01 ft in (1220 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSB6.7 |
| Net Power | 212 hp (158.1 kw) |
| Gross Power | 215 hp (160.4 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 700 lb ft (949.1 Nm) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 39462.8 lb (17900 kg) |
| Fuel Capacity | 88.3 gal (334 L) |
| Hydraulic System Fluid Capacity | 66.6 gal (252 L) |
| Engine Oil Fluid Capacity | 4.8 gal (18 L) |
| Cooling System Fluid Capacity | 10.4 gal (39 L) |
| Transmission Fluid Capacity | 8.5 gal (32 L) |
| Front Axle/Diff Fluid Capacity | 10.1 gal (38 L) |
| Rear Axle/Diff Fluid Capacity | 8.2 gal (31 L) |
| Static Tipping Weight | 30512 lb (13840 kg) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 23.5-25 |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23.7 mph (38.1 km/h) |
| Max Speed - Reverse | 15.7 mph (25.2 km/h) |
Hydraulic System
| Pump Flow Capacity | 61.6 gal/min (233 L/min) |
| Raise Time | 5.8 sec |
| Dump Time | 1.2 sec |
| Lower Time | 3.1 sec |
| Pump Type | Variable Axial Piston |
