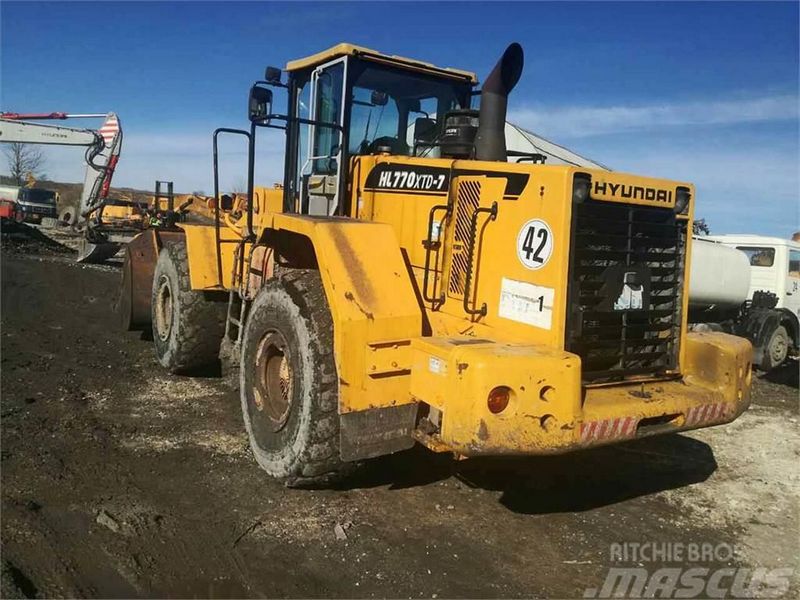

Hyundai HL770XTD-7
Browse All Hyundai or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 11.72 ft in (3570 mm) |
| Bucket Capacity - Heaped | 5.24 yd3 (4 m3) |
| Bucket Capacity - Struck | 4.52 yd3 (3.45 m3) |
| Bucket Width | 10.18 ft in (3100 mm) |
| Breakout Force | 45040 lb (200.35 kN) |
Dimensions
| Ground Clearance | 1.58 ft in (480 mm) |
| Length With Bucket On Ground | 29.86 ft in (9100 mm) |
| Width Over Tires | 9.77 ft in (2975 mm) |
| Height To Top Of Cab | 11.65 ft in (3550 mm) |
| Wheelbase | 11.29 ft in (3440 mm) |
| Hinge Pin - Max Height | 15.62 ft in (4760 mm) |
| Reach At Max Lift And Dump | 4.14 ft in (1260 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSC8.3-C |
| Net Power | 266 hp (198.4 kw) |
| Gross Power | 280 hp (208.8 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 1000 lb ft (1355.9 Nm) |
| Displacement | 506.5 cu in (8.3 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 51918.9 lb (23550 kg) |
| Fuel Capacity | 113.6 gal (430 L) |
| Hydraulic System Fluid Capacity | 84.6 gal (320 L) |
| Engine Oil Fluid Capacity | 5.3 gal (20 L) |
| Cooling System Fluid Capacity | 14.8 gal (56 L) |
| Transmission Fluid Capacity | 13.8 gal (52 L) |
| Front Axle/Diff Fluid Capacity | 20.7 gal (78 L) |
| Rear Axle/Diff Fluid Capacity | 14.1 gal (53 L) |
| Static Tipping Weight | 34130 lb (15481.2 kg) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Rear Axle Oscillation | 26 degrees |
| Tire Size | 26.5-25 20PR L3 |
Transmission
| Transmission Type | fully automatic power shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23.7 mph (38 km/h) |
| Max Speed - Reverse | 16.4 mph (26.3 km/h) |
Hydraulic System
| Relief Valve Setting | 2990 psi (20615.4 kPa) |
| Pump Flow Capacity | 108.6 gal/min (411 L/min) |
| Raise Time | 5.7 sec |
| Dump Time | 1.4 sec |
| Lower Time | 2.8 sec |
| Pump Type | open-centered, tandem circuit system |
