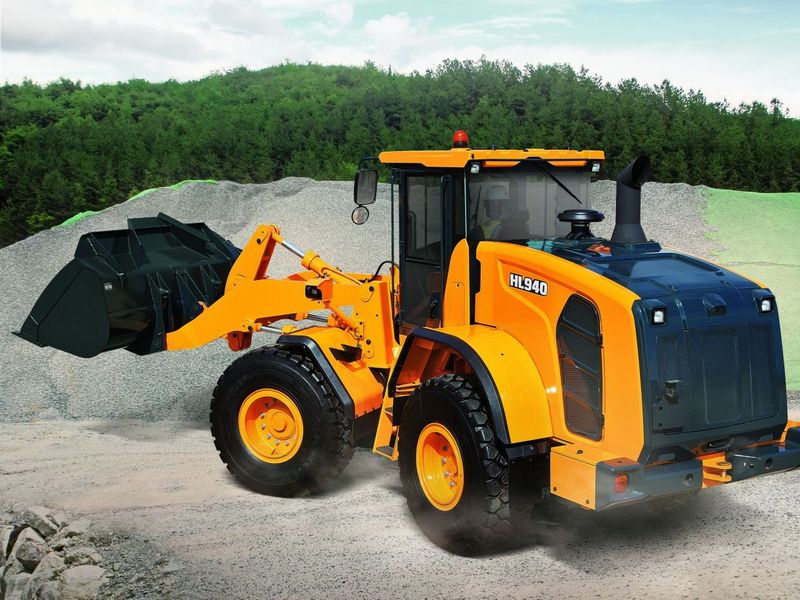

Hyundai HL940
Browse All Hyundai or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.14 ft in (2785 mm) |
| Breakout Force | 24800 lb (110.32 kN) |
| Bucket Capacity - Heaped | 3.01 yd3 (2.3 m3) |
| Bucket Capacity - Struck | 2.62 yd3 (2 m3) |
| Bucket Width | 8.54 ft in (2600 mm) |
Dimensions
| Ground Clearance | 1.37 ft in (417 mm) |
| Length With Bucket On Ground | 24.38 ft in (7430 mm) |
| Height To Top Of Cab | 10.83 ft in (3300 mm) |
| Wheelbase | 9.68 ft in (2950 mm) |
| Reach At Max Lift And Dump | 5.02 ft in (1530 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | CUMMINS |
| Engine Model | QSB6.7 |
| Net Power | 156 hp (116.4 kw) |
| Air Cleaner | Dry, Two stage dual elements |
| Gross Power | 158 hp (117.9 kw) |
| Torque | 622 lb ft (843.4 Nm) |
| Power Measured @ | 2100 rpm |
| Displacement | 408.9 cu in (6.7 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbocharged |
| Bore | 4.3 in (107 mm) |
| Stroke | 4.9 in (124 mm) |
Operational
| Operating Weight | 28880.6 lb (13100 kg) |
| Fuel Capacity | 58.2 gal (220 L) |
| Hydraulic System Fluid Capacity | 34.4 gal (130 L) |
| Cooling System Fluid Capacity | 9 gal (34 L) |
| Transmission Fluid Capacity | 7.2 gal (27 L) |
| Front Axle/Diff Fluid Capacity | 6.4 gal (24 L) |
| Rear Axle/Diff Fluid Capacity | 6.4 gal (24 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 95 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 20.5 R25 |
Transmission
| Transmission Type | Full automatic power shift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24.9 mph (40.1 km/h) |
| Max Speed - Reverse | 26.1 mph (42.1 km/h) |
Hydraulic System
| Pump Flow Capacity | 39 gal/min (147.7 L/min) |
| Raise Time | 5.5 sec |
| Dump Time | 1.1 sec |
| Lower Time | 3 sec |
| Pump Type | Variable displacement piston pump |
| Relief Valve Pressure | 2987 psi (20594.7 kPa) |
