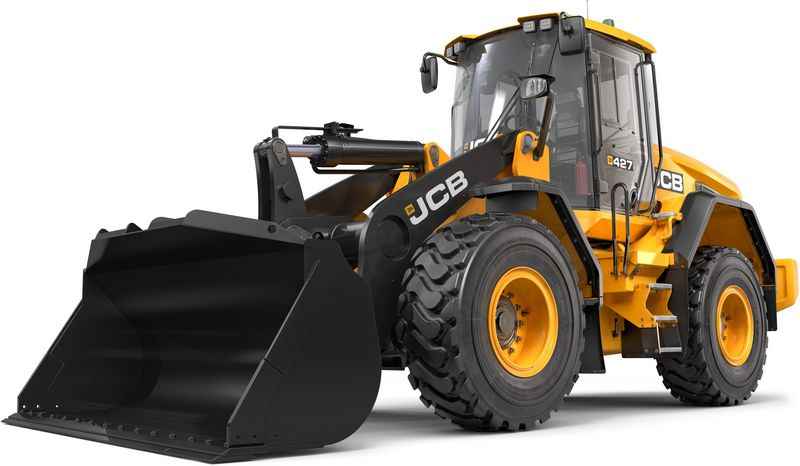

JCB 427 HT
Browse All JCB or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.42 ft in (2871 mm) |
| Bucket Capacity - Heaped | 2.36 yd3 (1.8 m3) |
| Bucket Capacity - Struck | 2.04 yd3 (1.56 m3) |
| Bucket Width | 8.37 ft in (2550 mm) |
| Breakout Force | 31023.64 lb (138 kN) |
Dimensions
| Ground Clearance | 1.55 ft in (472 mm) |
| Length With Bucket On Ground | 23.2 ft in (7070 mm) |
| Width Over Tires | 8.15 ft in (2483 mm) |
| Height To Top Of Cab | 11.03 ft in (3360 mm) |
| Wheelbase | 10.01 ft in (3050 mm) |
| Hinge Pin - Max Height | 12.72 ft in (3876 mm) |
| Reach At Max Lift And Dump | 3.36 ft in (1022 mm) |
Engine
| Emission Tier Level | EU Stage IV, US EPA Tier 4F |
| Number Of Cylinders | 6 |
| No. Of Valves | 4 |
| Engine Model | QSB |
| Engine Type | Cummins |
| Net Power | 146 hp (108.9 kw) |
| Air Cleaner | Cyclonic pre filter with engine fan scavenge system |
| Gross Power | 179 hp (133.5 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 841 Nm |
| Displacement | 408.9 cu in (6.7 L) |
| Torque Measured @ | 1500 rpm |
| Aspiration | Turbo Charged |
| Fan Drive Type | Hydraulically driven cooling fan |
Operational
| Def Tank Capacity | 10.6 gal (40 L) |
| Full Turn Tipping Load | 20895.5 lb (9478 kg) |
| Payload | 10447.8 lb (4739 kg) |
| Operating Weight | 29500.1 lb (13381 kg) |
| Fuel Capacity | 76.7 gal (290 L) |
| Hydraulic System Fluid Capacity | 55.5 gal (210 L) |
| Turning Radius | 19.4 ft in (5902 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 120 amps |
| Rear Axle Oscillation | 10.5 degrees |
| Articulation Angle | 40 degrees |
Transmission
| Transmission Type | 4 speed non-lock up converter 4WG |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24 mph (38.5 km/h) |
| Max Speed - Reverse | 15.4 mph (24.7 km/h) |
Hydraulic System
| Max Operating Pressure | 250 bar |
| Relief Valve Setting | 3190 psi (21994.3 kPa) |
| Pump Flow Capacity | 33.3 gal/min (126 L/min) |
| Raise Time | 5.1 sec |
| Dump Time | 1.5 sec |
| Lower Time | 3.3 sec |
| Total Cycle | 9.8 sec |
| Pump Type | Variable displacement |
