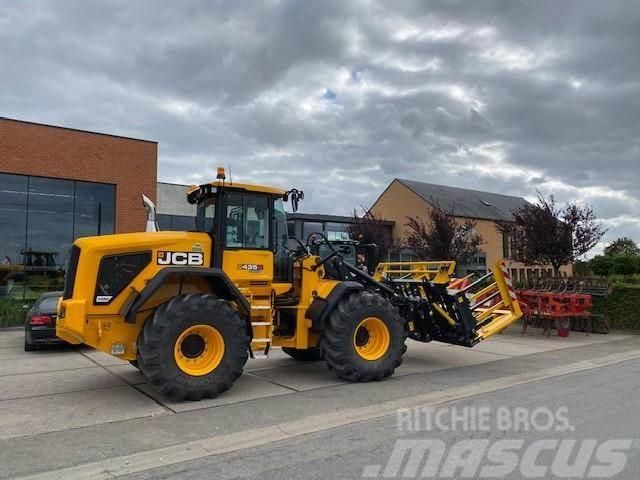

JCB 436HT Super High Lift
Browse All JCB or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 13.27 ft in (4042 mm) |
| Breakout Force | 34395.77 lb (153 kN) |
| Bucket Capacity - Heaped | 3.01 yd3 (2.3 m3) |
| Bucket Capacity - Struck | 2.6 yd3 (1.99 m3) |
| Bucket Width | 8.99 ft in (2740 mm) |
Dimensions
| Ground Clearance | 1.51 ft in (459 mm) |
| Length With Bucket On Ground | 25.33 ft in (7720 mm) |
| Height To Top Of Cab | 10.88 ft in (3315 mm) |
| Wheelbase | 9.85 ft in (3000 mm) |
| Hinge Pin - Max Height | 16.33 ft in (4976 mm) |
| Reach At Max Lift And Dump | 3.87 ft in (1178 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2257 |
| Engine Model | BTAA 5.9C |
| Net Power | 173 hp (129.1 kw) |
| Gross Power | 177 hp (132 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 579.8 lb ft (786 Nm) |
| Displacement | 360.1 cu in (5.9 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 35972.9 lb (16317 kg) |
| Fuel Capacity | 60.8 gal (230 L) |
| Hydraulic System Fluid Capacity | 55.5 gal (210 L) |
| Engine Oil Fluid Capacity | 3.7 gal (14 L) |
| Cooling System Fluid Capacity | 9.3 gal (35 L) |
| Transmission Fluid Capacity | 9 gal (34 L) |
| Front Axle/Diff Fluid Capacity | 10.4 gal (39 L) |
| Rear Axle/Diff Fluid Capacity | 10.4 gal (39 L) |
| Static Tipping Weight | 14266.2 lb (6471 kg) |
| Turning Radius | 20.4 ft in (6196 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Tire Size | 20.5R25 HXA (L3) |
Transmission
| Transmission Type | smooth shift powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24.3 mph (39 km/h) |
| Max Speed - Reverse | 16.5 mph (26.5 km/h) |
Hydraulic System
| Relief Valve Setting | 3625 psi (24993.5 kPa) |
| Pump Flow Capacity | 34.9 gal/min (132 L/min) |
| Raise Time | 5.9 sec |
| Dump Time | 1 sec |
| Lower Time | 3.4 sec |
| Pump Type | twin variable displacement piston pumps |
