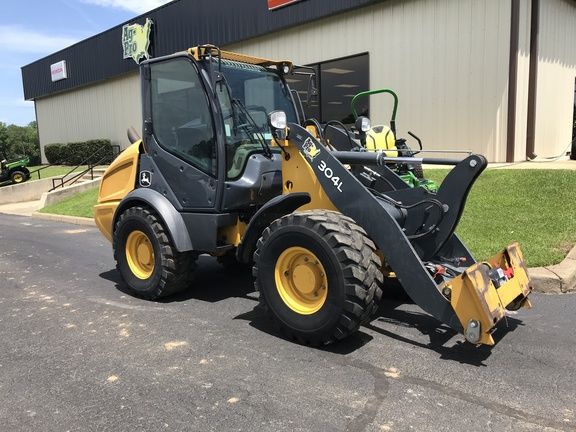

John Deere 304L
Browse All John Deere or Wheel Loader Models
Contents:
Dimensions
| Ground Clearance | 1.09 ft in (330 mm) |
| Length With Bucket On Ground | 18.12 ft in (5520 mm) |
| Width Over Tires | 5.88 ft in (1790 mm) |
| Height To Top Of Cab | 97.25 in (2470 mm) |
| Wheelbase | 7.06 ft in (2150 mm) |
| Turning Clearance Circle | 30 ft |
Engine
| Pump | Gear |
| Engine Output-Net | 64.4 hp (48 kw) |
| Transmission Type | Hydrostatic |
| Engine Make | YANMAR |
| Engine Model | 4TNV98 |
| Torque | 174.9 lb ft (237 Nm) |
| Rated Speed | 2400 rpm |
| Displacement | 201.4 cu in (3.3 L) |
| System Voltage | 12 V |
| Emission Level | Tier 4 |
| Alternator | 80 amps |
Capacities
| Fuel Tank | 13.3 gal (50 L) |
| Hydraulic Tank | 23.8 gal (90 L) |
| Heaped Capacity | 1.1 yd3 (0.8 m3) |
| Transmission | 0.3 gal (1 L) |
| Axle Each (Front & Rear) | 1.6 gal (6 L) |
Operational
| Operating Weight | 12778 lb (5796 kg) |
| Tire Size | 405/70 R18 |
Transmission
| Pump Flow | 20.4 gal/min (77 L/min) |
| Transmission Type | Gear |
| System Voltage | 12 V |
Brakes
| Parking Brake | Wet Disc |
| Actuation | Hydraulic |
| Brakes Type | Wet Disc & Drum |
