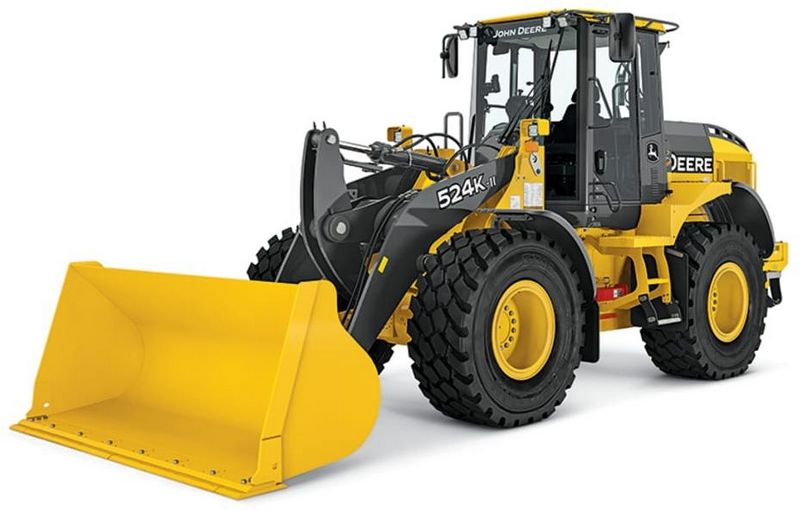

John Deere 524K-II
Browse All John Deere or Wheel Loader Models
Contents:
Bucket
| Breakout - Bucket | 9060 (19974) kgf (lbf) |
| Bucket Capacity - Smallest | 2.75 yd3 (2.1 m3) |
| Largest Bucket Capacity | 4.06 yd3 (3.1 m3) |
Dimensions
| Ground Clearance | 15.75 in (400 mm) |
| Length With Bucket On Ground | 24.09 ft in (7340 mm) |
| Width Over Tires | 8.36 ft in (2546 mm) |
| Wheelbase | 9.62 ft in (2930 mm) |
| Hinge Pin - Max Height | 12.37 ft in (3770 mm) |
| Reach At Max Lift And Dump | 4.73 ft in (1440 mm) |
| Turning Circle | 39.8 ft in (12130 mm) |
| Height Over Cab | 10.67 ft in (3250 mm) |
Engine
| Pump | Piston |
| Engine Output-Net | 139.5 hp (104 kw) |
| Transmission Type | Powershift |
| Engine Make | John Deere |
| Engine Model | PowerTech PVS 6068 |
| Torque | 472.1 lb ft (640 Nm) |
| Rated Speed | 1900 rpm |
| Displacement | 415 cu in (6.8 L) |
| Torque Rise | 66 % |
| System Voltage | 24 V |
| Emission Level | Tier 4 |
| Alternator | 100 amps |
Driveline
| Ride Control System | Optional |
| Service Brake Type | Wet Disc |
| Parking Brake Type | Wet Multi Disc - Driveline |
| Differential Lock | Front- Locking, Rear- Open |
| Service Brake Actuation | Hydraulic |
| Tire Size - Standard | 20.5 R25 |
| Service Brake - Location | Axle Inboard |
Capacities
| Hydraulic Tank | 31.4 gal (118.7 L) |
| Heaped Capacity | 2.8 yd3 (2.1 m3) |
| Transmission | 5.7 gal (21.5 L) |
Operational
| Operating Weight | 27928.2 lb (12668 kg) |
| Fuel Capacity | 58.2 gal (220 L) |
| Front Axle/Diff Fluid Capacity | 4.8 gal (18 L) |
| Rear Axle/Diff Fluid Capacity | 4.8 gal (18 L) |
Transmission
| Pump Flow | 43.6 gal/min (165 L/min) |
| System Pressure | 250 psi (1723.3 kPa) |
