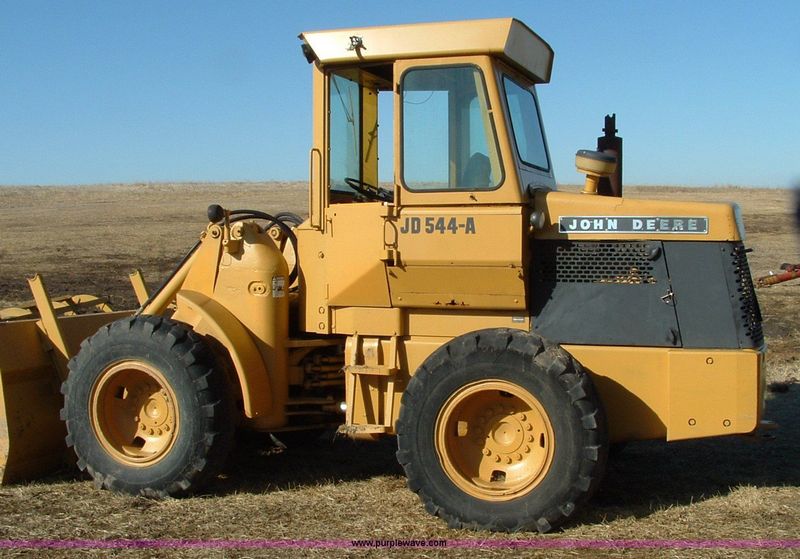

John Deere 544A
Browse All John Deere or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.92 ft in (2718.82 mm) |
| Breakout Force | 16105 lb (71.64 kN) |
| Bucket Capacity - Heaped | 1.5 yd3 (1.15 m3) |
| Bucket Capacity - Struck | 1.22 yd3 (0.94 m3) |
| Bucket Width | 7.32 ft in (2230 mm) |
Dimensions
| Ground Clearance | 1.2 ft in (368 mm) |
| Length With Bucket On Ground | 19 ft in (5790 mm) |
| Height To Top Of Cab | 9.75 ft in (2971.8 mm) |
| Wheelbase | 7.88 ft in (2400 mm) |
| Hinge Pin - Max Height | 11.17 ft in (3404.62 mm) |
| Reach At Max Lift And Dump | 2.8 ft in (851 mm) |
Engine
| Engine Make | 2240 |
| Net Power | 94 hp (70.1 kw) |
| Gross Power | 104 hp (77.6 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 240 lb ft (3318 Nm) |
| Displacement | 329 cu in (5.4 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | Natural |
Operational
| Operating Weight | 19335 lb (8770 kg) |
| Fuel Capacity | 40 gal (151.4 L) |
| Hydraulic System Fluid Capacity | 12 gal (45.5 L) |
| Engine Oil Fluid Capacity | 2.5 gal (9.5 L) |
| Cooling System Fluid Capacity | 7.5 gal (28.4 L) |
| Transmission Fluid Capacity | 9.8 gal (36.9 L) |
| Front Axle/Diff Fluid Capacity | 4.3 gal (16.1 L) |
| Rear Axle/Diff Fluid Capacity | 4.8 gal (18 L) |
| Static Tipping Weight | 13245 lb (6007 kg) |
| Turning Radius | 13.9 ft in (4215.4 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 55 amps |
| Rear Axle Oscillation | 22 degrees |
| Tire Size | 13-24 / 17.5-25 |
Transmission
| Transmission Type | Powershift transmission |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 23 mph (37 km/h) |
| Max Speed - Reverse | 9.2 mph (14.8 km/h) |
Hydraulic System
| Relief Valve Setting | 2250 psi (15513.2 kPa) |
| Pump Flow Capacity | 42 gal/min (159 L/min) |
| Pump Type | Variable displacement- type pump |
