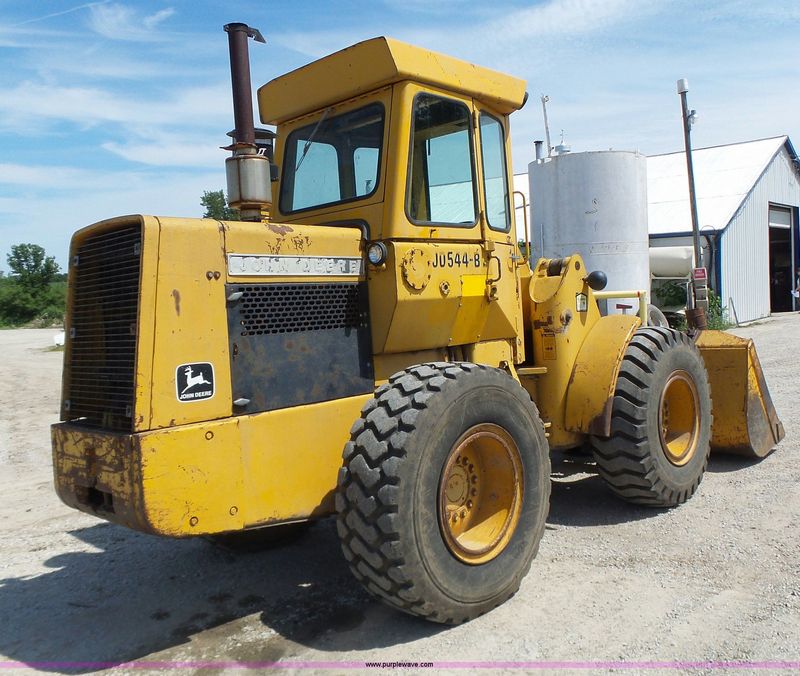

John Deere 544B
Browse All John Deere or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.83 ft in (2690 mm) |
| Breakout Force | 17885 lb (79.56 kN) |
| Bucket Capacity - Heaped | 1.76 yd3 (1.34 m3) |
| Bucket Capacity - Struck | 1.43 yd3 (1.1 m3) |
| Bucket Width | 7.68 ft in (2340 mm) |
Dimensions
| Ground Clearance | 1.3 ft in (394 mm) |
| Length With Bucket On Ground | 19.25 ft in (5867.4 mm) |
| Height To Top Of Cab | 10.08 ft in (3072.39 mm) |
| Wheelbase | 6.7 ft in (2040 mm) |
| Hinge Pin - Max Height | 11.23 ft in (3420 mm) |
| Reach At Max Lift And Dump | 2.9 ft in (882 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Net Power | 105 hp (78.3 kw) |
| Gross Power | 115 hp (85.8 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 325 lb ft (441 Nm) |
| Displacement | 414 cu in (6.8 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 21775 lb (9877 kg) |
| Fuel Capacity | 40 gal (151.4 L) |
| Hydraulic System Fluid Capacity | 12 gal (45.4 L) |
| Engine Oil Fluid Capacity | 5 gal (18.9 L) |
| Cooling System Fluid Capacity | 8.1 gal (30.3 L) |
| Transmission Fluid Capacity | 9.8 gal (36.9 L) |
| Front Axle/Diff Fluid Capacity | 6 gal (22.7 L) |
| Rear Axle/Diff Fluid Capacity | 6.3 gal (23.7 L) |
| Static Tipping Weight | 16395 lb (7437 kg) |
| Turning Radius | 13.9 ft in (4215.4 mm) |
| Operating Voltage | 12 V |
| Rear Axle Oscillation | 22 degrees |
| Tire Size | 17.5- 25 |
Transmission
| Transmission Type | Powershift planetary |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 25 mph (40.3 km/h) |
| Max Speed - Reverse | 10 mph (16 km/h) |
Hydraulic System
| Relief Valve Setting | 2250 psi (15513.2 kPa) |
| Pump Flow Capacity | 44.5 gal/min (168.5 L/min) |
| Pump Type | Engine driven vane |
