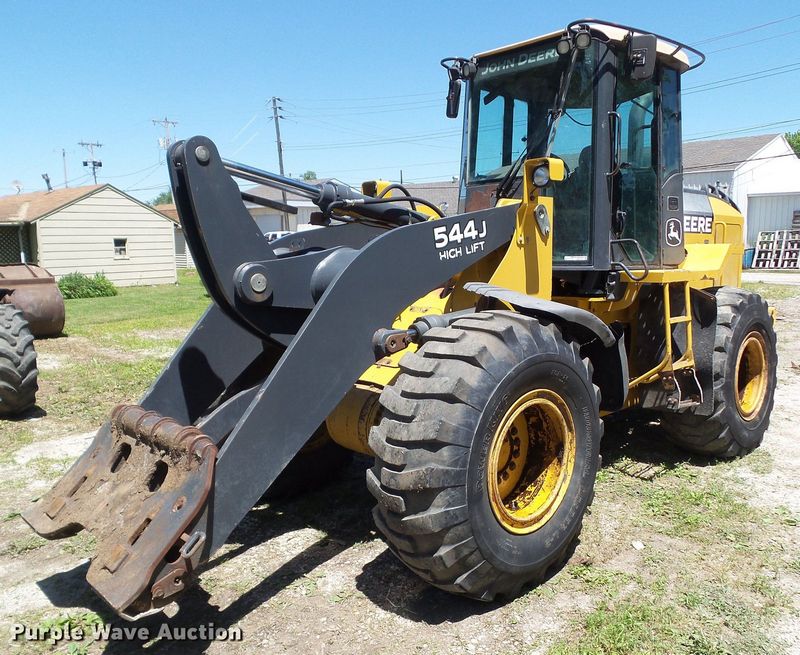

John Deere 544J High Lift
Browse All John Deere or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.33 ft in (3150 mm) |
| Bucket Capacity - Heaped | 3 yd3 (2.3 m3) |
| Bucket Width | 8.83 ft in (2691.39 mm) |
| Breakout Force | 20939 lb (93.1 kN) |
Dimensions
| Ground Clearance | 17.58 ft in (450 mm) |
| Length With Bucket On Ground | 25.25 ft in (7700 mm) |
| Height To Top Of Cab | 10.67 ft in (3250 mm) |
| Wheelbase | 9.67 ft in (2950 mm) |
| Hinge Pin - Max Height | 13.83 ft in (4190 mm) |
| Reach At Max Lift And Dump | 3.25 ft in (990 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6068H |
| Net Power | 149 hp (111 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 496 lb ft (672 Nm) |
| Displacement | 414 cu in (6.8 L) |
| Torque Measured @ | 1600 rpm |
| Aspiration | Turbochargeed charge air cooled |
| Torque Rise | 38 % |
Operational
| Operating Weight | 28534 lb (12943 kg) |
| Fuel Capacity | 85 gal (322 L) |
| Hydraulic System Fluid Capacity | 2535 gal (96.5 L) |
| Engine Oil Fluid Capacity | 5.6 gal (21 L) |
| Cooling System Fluid Capacity | 5.9 gal (22 L) |
| Transmission Fluid Capacity | 4.9 gal (18.5 L) |
| Front Axle/Diff Fluid Capacity | 4.5 gal (17 L) |
| Rear Axle/Diff Fluid Capacity | 4.5 gal (17 L) |
| Static Tipping Weight | 22018 lb (9987 kg) |
| Turning Radius | 16.3 ft in (4953 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 20.5 R25 |
Transmission
| Transmission Type | Automatic powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 23.8 mph (38.3 km/h) |
| Max Speed - Reverse | 15 mph (24.2 km/h) |
Hydraulic System
| Relief Valve Setting | 3650 psi (25150 kPa) |
| Pump Flow Capacity | 50 gal/min (189 L/min) |
| Raise Time | 5.5 sec |
| Dump Time | 1.4 sec |
| Lower Time | 2.5 sec |
| Pump Type | Variable axial piston |
