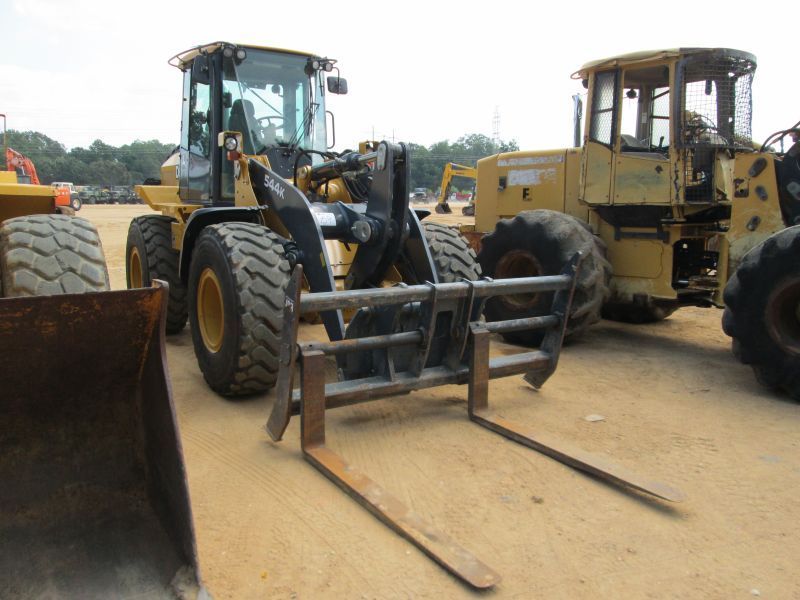

John Deere 544K Powerllel w/Q Coupler
Browse All John Deere or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.8 ft in (2680 mm) |
| Bucket Capacity - Heaped | 3.01 yd3 (2.3 m3) |
| Bucket Capacity - Struck | 2.62 yd3 (2 m3) |
| Bucket Width | 8.83 ft in (2690 mm) |
| Breakout Force | 18968 lb (84.38 kN) |
Dimensions
| Ground Clearance | 1.32 ft in (400 mm) |
| Length With Bucket On Ground | 25.23 ft in (7690 mm) |
| Width Over Tires | 8.36 ft in (2546 mm) |
| Height To Top Of Cab | 10.63 ft in (3240 mm) |
| Wheelbase | 9.62 ft in (2930 mm) |
| Hinge Pin - Max Height | 12.64 ft in (3850 mm) |
| Reach At Max Lift And Dump | 3.58 ft in (1090 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | E 6068H, Tier III certified |
| Net Power | 167 hp (124.6 kw) |
| Power Measured @ | 1900 rpm |
| Max Torque | 496 lb ft (672.5 Nm) |
| Displacement | 414 cu in (6.8 L) |
| Torque Measured @ | 1600 rpm |
| Aspiration | Turbocharged charge air cooled |
| Torque Rise | 38 % |
Operational
| Operating Weight | 30512 lb (13840 kg) |
| Fuel Capacity | 85.9 gal (325 L) |
| Hydraulic System Fluid Capacity | 24.1 gal (91 L) |
| Engine Oil Fluid Capacity | 5.1 gal (19 L) |
| Cooling System Fluid Capacity | 6.1 gal (23 L) |
| Transmission Fluid Capacity | 4.9 gal (18.5 L) |
| Front Axle/Diff Fluid Capacity | 4.5 gal (17 L) |
| Rear Axle/Diff Fluid Capacity | 4.5 gal (17 L) |
| Static Tipping Weight | 19380.9 lb (8791 kg) |
| Turning Radius | 16.5 ft in (5000 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 20.5 R 25 |
Transmission
| Transmission Type | Countershaft, powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 22.2 mph (35.7 km/h) |
| Max Speed - Reverse | 15 mph (24.1 km/h) |
Hydraulic System
| Relief Valve Setting | 3650 psi (25165.9 kPa) |
| Pump Flow Capacity | 50 gal/min (189 L/min) |
| Raise Time | 5.6 sec |
| Dump Time | 1.2 sec |
| Lower Time | 2.5 sec |
| Pump Type | variable displacement, axial piston |
