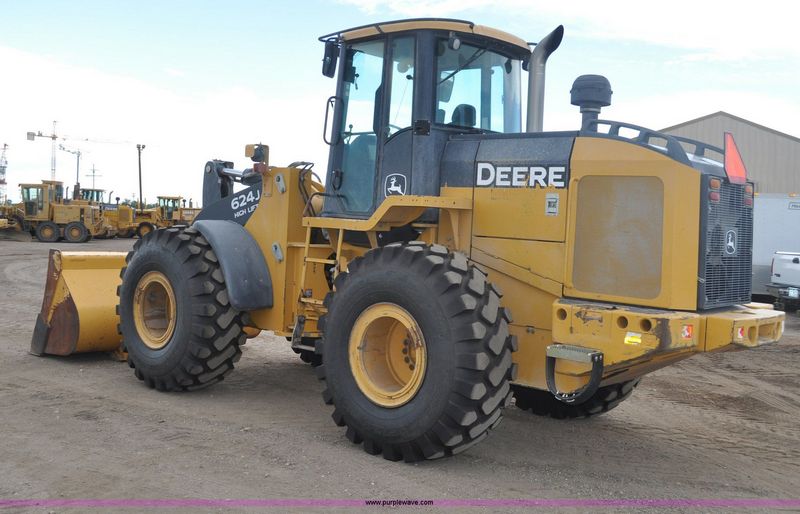

John Deere 624J High-Lift
Browse All John Deere or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.67 ft in (3250 mm) |
| Bucket Capacity - Heaped | 3.5 yd3 (2.7 m3) |
| Bucket Width | 8.5 ft in (2590.81 mm) |
| Breakout Force | 25884 lb (115.1 kN) |
Dimensions
| Ground Clearance | 17.08 ft in (430 mm) |
| Length With Bucket On Ground | 27.08 ft in (8260 mm) |
| Width Over Tires | 101.7 ft in (2582 mm) |
| Height To Top Of Cab | 10.92 ft in (3330 mm) |
| Wheelbase | 9.92 ft in (3020 mm) |
| Hinge Pin - Max Height | 14.25 ft in (4340 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6068H |
| Net Power | 198 hp (147.7 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 617 lb ft (837 Nm) |
| Displacement | 415 cu in (6.8 L) |
| Torque Measured @ | 1600 rpm |
| Aspiration | Turbocharged charge air cooled |
| Torque Rise | 55 % |
Operational
| Operating Weight | 33587 lb (15235 kg) |
| Fuel Capacity | 93 gal (352 L) |
| Hydraulic System Fluid Capacity | 32 gal (119 L) |
| Engine Oil Fluid Capacity | 5.6 gal (21 L) |
| Cooling System Fluid Capacity | 7.2 gal (27 L) |
| Transmission Fluid Capacity | 6.1 gal (23 L) |
| Front Axle/Diff Fluid Capacity | 5.9 gal (22 L) |
| Rear Axle/Diff Fluid Capacity | 4.5 gal (17 L) |
| Static Tipping Weight | 24998 lb (11339 kg) |
| Turning Radius | 17 ft in (5181.6 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 20.5 R25 |
Transmission
| Transmission Type | Automatic powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24.6 mph (39.6 km/h) |
| Max Speed - Reverse | 16 mph (25.8 km/h) |
Hydraulic System
| Relief Valve Setting | 3675 psi (25320 kPa) |
| Pump Flow Capacity | 60 gal/min (227 L/min) |
| Raise Time | 5.8 sec |
| Dump Time | 1.7 sec |
| Lower Time | 2.8 sec |
| Pump Type | Variable axial piston |
