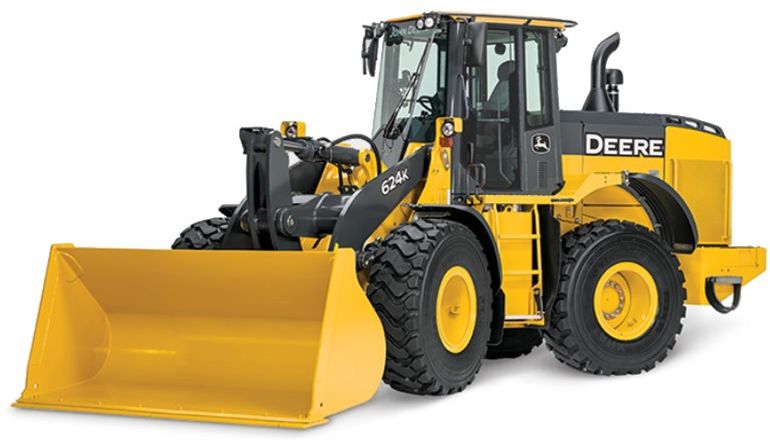

John Deere 624K Z-Bar
Browse All John Deere or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.39 ft in (2860 mm) |
| Bucket Capacity - Heaped | 3.54 yd3 (2.7 m3) |
| Bucket Capacity - Struck | 3.01 yd3 (2.3 m3) |
| Bucket Width | 8.83 ft in (2690 mm) |
| Breakout Force | 28484 lb (126.71 kN) |
Dimensions
| Ground Clearance | 1.26 ft in (384 mm) |
| Length With Bucket On Ground | 25.46 ft in (7760 mm) |
| Width Over Tires | 8.72 ft in (2657 mm) |
| Height To Top Of Cab | 10.9 ft in (3320 mm) |
| Wheelbase | 10.14 ft in (3090 mm) |
| Hinge Pin - Max Height | 12.96 ft in (3950 mm) |
| Reach At Max Lift And Dump | 3.35 ft in (1020 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6068H, Tier III certified |
| Net Power | 198 hp (147.7 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 617 lb ft (836.6 Nm) |
| Displacement | 414 cu in (6.8 L) |
| Torque Measured @ | 1600 rpm |
| Aspiration | Turbocharged charge air cooled |
| Torque Rise | 55 % |
Operational
| Operating Weight | 33477.2 lb (15185 kg) |
| Fuel Capacity | 93 gal (352 L) |
| Hydraulic System Fluid Capacity | 29.1 gal (110 L) |
| Engine Oil Fluid Capacity | 5.1 gal (19 L) |
| Cooling System Fluid Capacity | 7.2 gal (27 L) |
| Transmission Fluid Capacity | 5.6 gal (21 L) |
| Front Axle/Diff Fluid Capacity | 5.9 gal (22 L) |
| Rear Axle/Diff Fluid Capacity | 4.5 gal (17 L) |
| Static Tipping Weight | 30692.8 lb (13922 kg) |
| Turning Radius | 17.3 ft in (5270 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 20.5 R 25 |
Transmission
| Transmission Type | Countershaft, powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 24.6 mph (39.5 km/h) |
| Max Speed - Reverse | 16 mph (25.7 km/h) |
Hydraulic System
| Relief Valve Setting | 3675 psi (25338.3 kPa) |
| Pump Flow Capacity | 59 gal/min (223 L/min) |
| Raise Time | 5.9 sec |
| Dump Time | 1.3 sec |
| Lower Time | 2.7 sec |
| Pump Type | variable displacement, axial piston |
