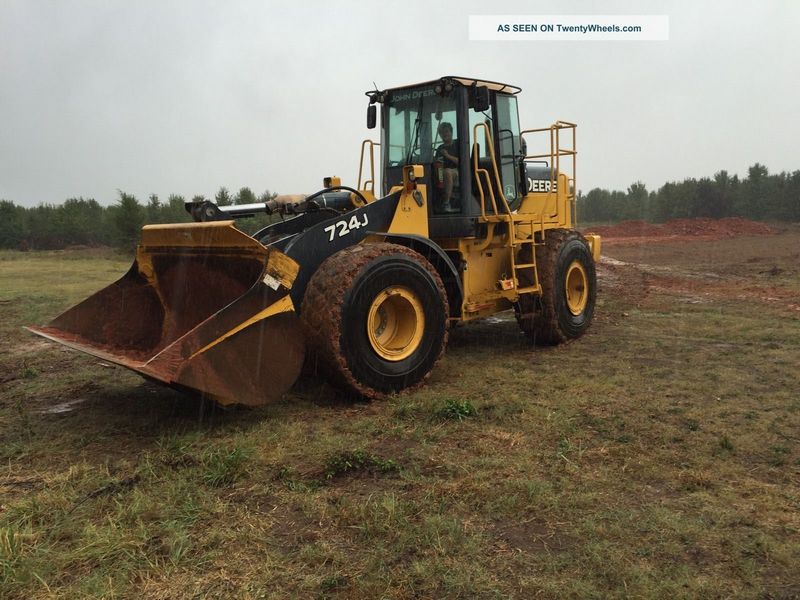

John Deere 724J
Browse All John Deere or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.46 ft in (2883 mm) |
| Bucket Capacity - Struck | 4.2 yd3 (3.22 m3) |
| Bucket Width | 9.98 ft in (3040 mm) |
| Bucket Capacity - Heaped | 4.75 yd3 (3.64 m3) |
Dimensions
| Ground Clearance | 1.49 ft in (453 mm) |
| Length With Bucket On Ground | 27.43 ft in (8360 mm) |
| Height To Top Of Cab | 11.2 ft in (3412 mm) |
| Wheelbase | 10.5 ft in (3200 mm) |
| Hinge Pin - Max Height | 13.57 ft in (4136 mm) |
| Reach At Max Lift And Dump | 3.78 ft in (1152 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6081H |
| Net Power | 250 hp (186.5 kw) |
| Power Measured @ | 1800 rpm |
| Displacement | 496 cu in (8.2 L) |
| Torque Measured @ | 1300 rpm |
| Aspiration | Turbocharged, charge air cooled |
| Torque Rise | 49 % |
Operational
| Operating Weight | 51057 lb (23159.1 kg) |
| Fuel Capacity | 100 gal (378.6 L) |
| Hydraulic System Fluid Capacity | 31 gal (117.4 L) |
| Engine Oil Fluid Capacity | 6.7 gal (25 L) |
| Cooling System Fluid Capacity | 8.2 gal (31 L) |
| Transmission Fluid Capacity | 7.2 gal (27 L) |
| Turning Radius | 18.1 ft in (5500 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 26 degrees |
Transmission
| Transmission Type | Countershaft-Type Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 22 mph (35.5 km/h) |
| Max Speed - Reverse | 55.5 mph (89.4 km/h) |
Hydraulic System
| Raise Time | 6 sec |
| Dump Time | 1.2 sec |
| Lower Time | 30 sec |
